Transformer Oil Dissolved Gas Chromatography Analyzer
Ⅰ: Overview about the Transformer Oil Dissolved Gas Chromatography Analyzer:
Gas chromatography is a technique for separation and analysis of multi-component mixtures. It mainly uses the boiling point, polarity and adsorption coefficient of each component of the sample in the chromatographic column differences, so that each component is separated in the chromatographic column, and the separation of each component for qualitative and quantitative analysis.
The gas chromatograph takes the gas as the mobile phase (carrier gas). When the sample is sent into the sampler and vaporized, it is carried into the packed column or capillary column by the carrier gas. Due to the differences in the boiling point, polarity and adsorption coefficient of each component in the sample, the components are separated in the column. Finally, it is sent to the chromatographic workstation through the network, and the chromatographic workstation records and analyzes the gas chromatogram of each component, so as to obtain the analysis report of each component.
Ⅱ: Main technical indicators of the Oil Dissolved Gas Analyzer:
● Operation display: 8 inch HD color LCD touch screen, can be used as a handheld controller;
● Temperature control area: 8 ways;
● Temperature control range: room temperature above 4℃ ~ 450℃, increment: 1℃, accuracy: ±0.1℃;
● Program heating order: 16 order (extensible);
● Lifting rate: 0.1 ~ 60℃/min;
● Gas path control: precision mechanical valve flow control;
● External events: 8 ways; Auxiliary control output 2;
Types of sampler: filling column, capillary, six-way valve, automatic sampler;
● Number of detectors: 3 (maximum);FID, TCD, ECD, FPD and NPD optional;
● Start sampling: manual, automatic optional;
● Communication interface: Ethernet: IEEE802.3;
Wanna more detailed specificaions, please contact our customer service!

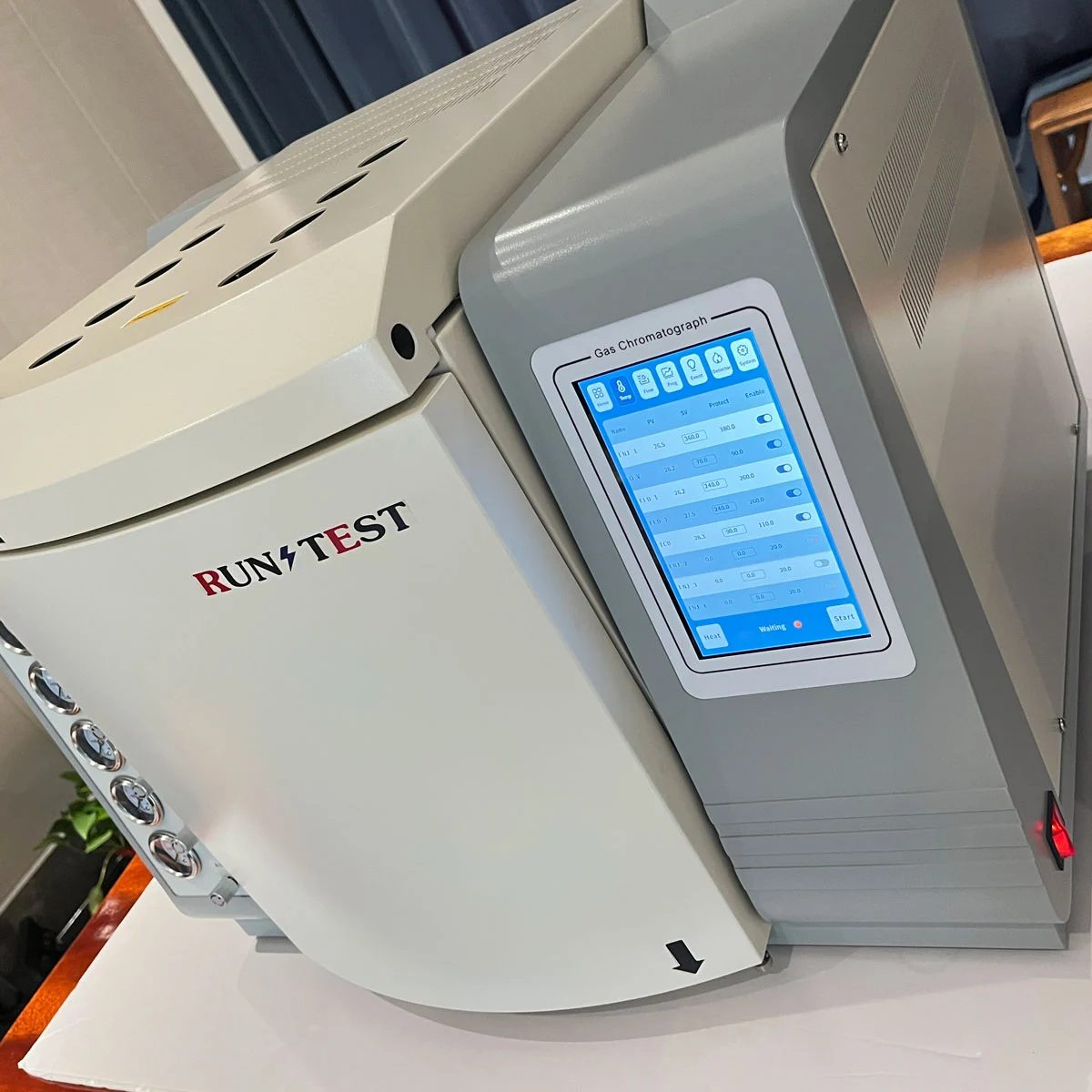

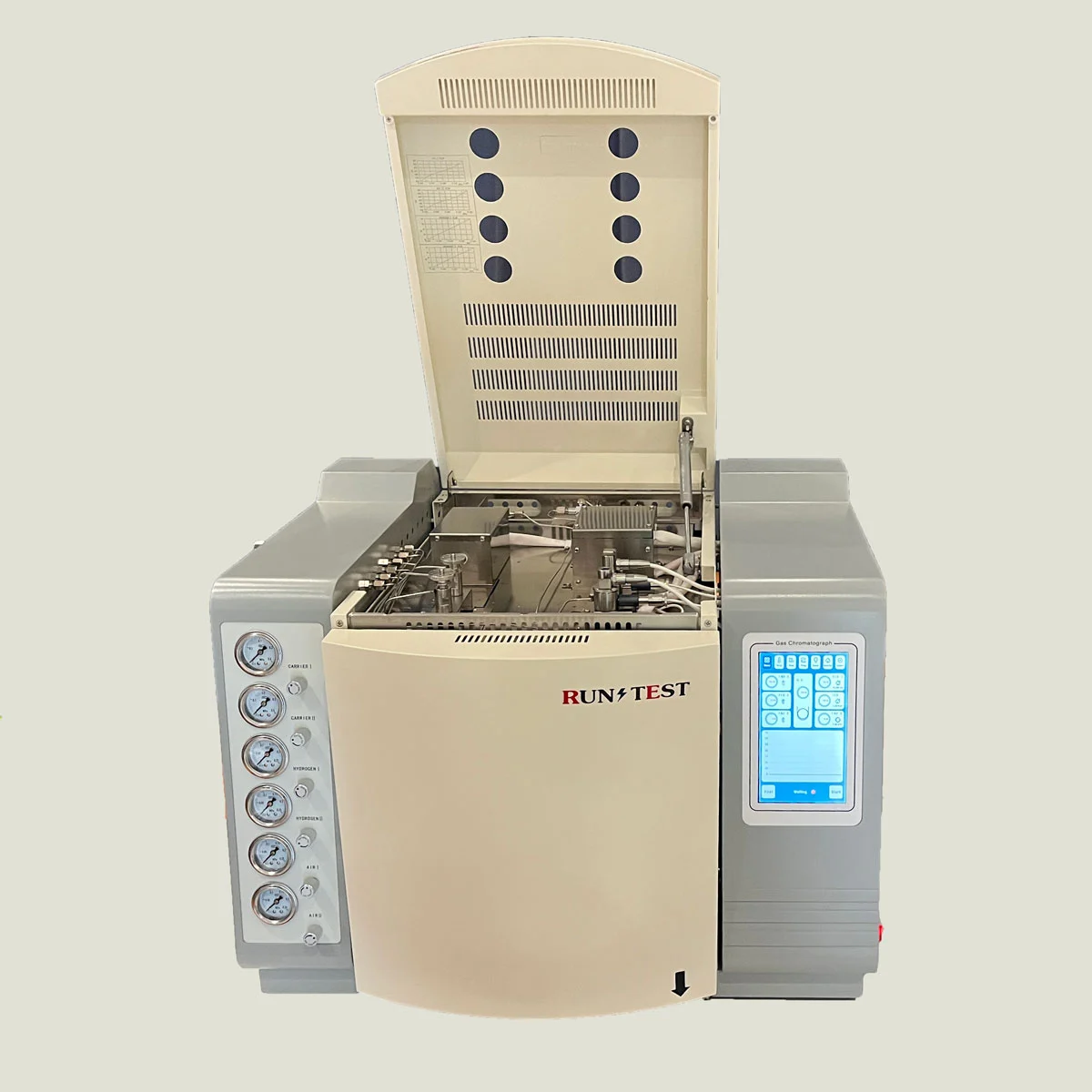

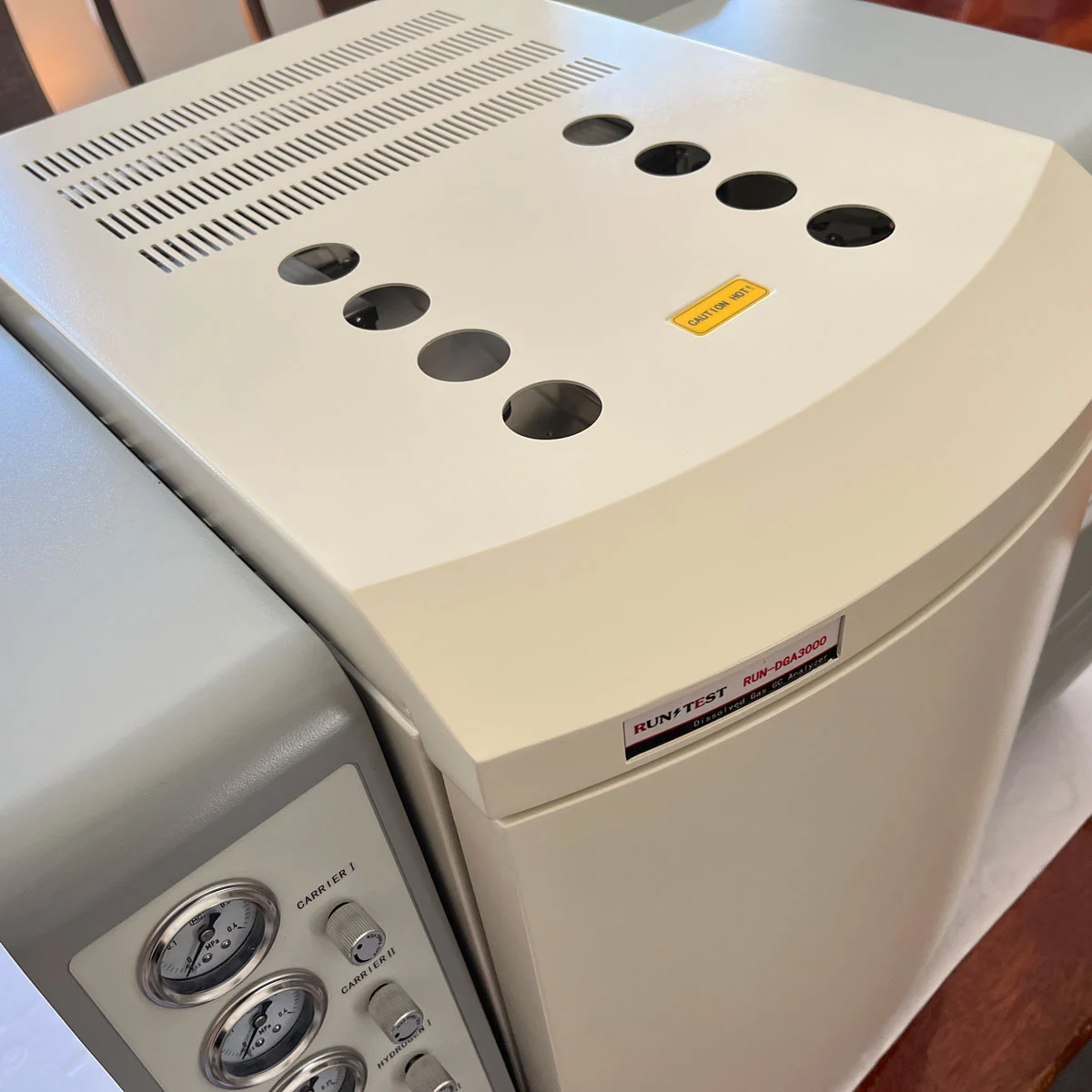

Ⅲ: Detailed Show About the Gas Chromatography Analyzer:
Ⅳ: Functional Characteristics About The DGA:
★ It adopts the advanced 100M/1000M Ethernet communication interface and built-in IP protocol stack, so that the instrument can realize long-distance data transmission through the enterprise's internal LAN and the Internet; it is convenient for the establishment of the laboratory, and simplifies the configuration of the laboratory. Facilitate the management of analytical data;
★ Three independent connection IP addresses are designed inside the instrument, which can be connected to the working computer (laboratory site), the computer in charge (such as the quality inspection department, production department, etc.), and the executive computer (such as the Environmental Protection Bureau, Technical Supervision Bureau, etc.) , can monitor the operation of the instrument and analyze the data results in real time when needed;
★ The dedicated workstation equipped with the instrument can support the access of multiple chromatographs at the same time, realize data processing and instrument reverse control, and simplify document management;
★ The instrument can be connected to the manufacturer through the Internet to realize remote diagnosis, remote update, etc. (requires user settings);
★ The instrument is equipped with an 8-inch color LCD touch screen, which supports hot swapping and can be used as a handheld controller;
★ The instrument adopts a multi-processor parallel working mode, which makes the instrument more stable and reliable; it can be equipped with a variety of high-performance detectors, such as FID, TCD, ECD, FPD and NPD, and up to three detectors can be installed at the same time to meet complex requirements. Sample analysis requirements.
★ The instrument adopts a modular structure design, and the later maintenance is simple and convenient.
★ Brand-new microcomputer temperature control system with high temperature control accuracy, superior reliability and anti-interference performance; it has eight completely independent temperature control outputs, which can realize sixteen-step temperature programming, and has an automatic rear door opening system for the column box, which can control the room temperature Improved, faster heating/cooling speed;
★ Chromatograph built-in low-noise, high-resolution 24-bit AD circuit, with functions of baseline storage and subtraction.
