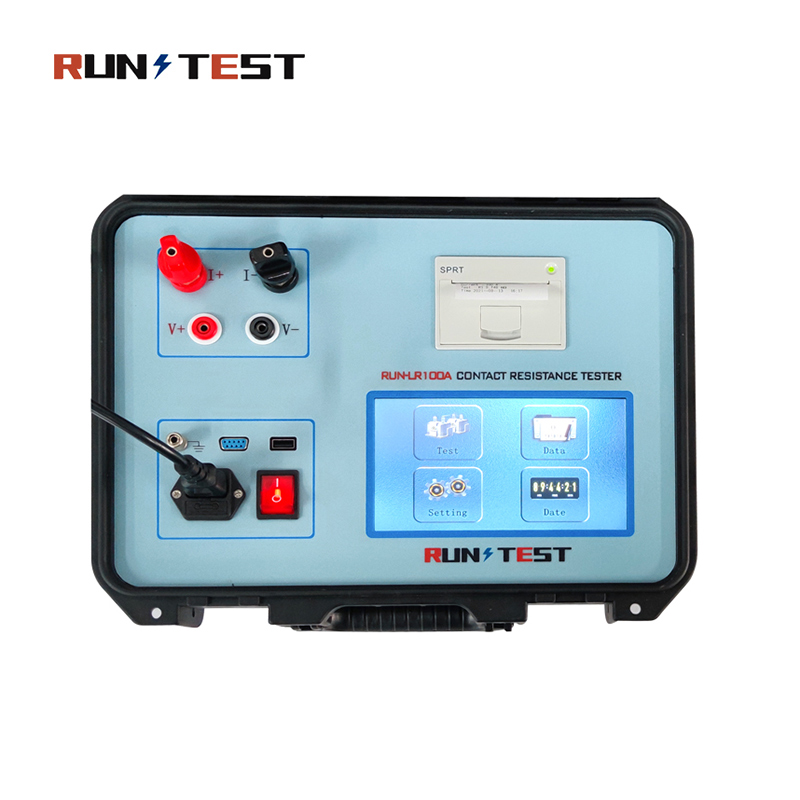

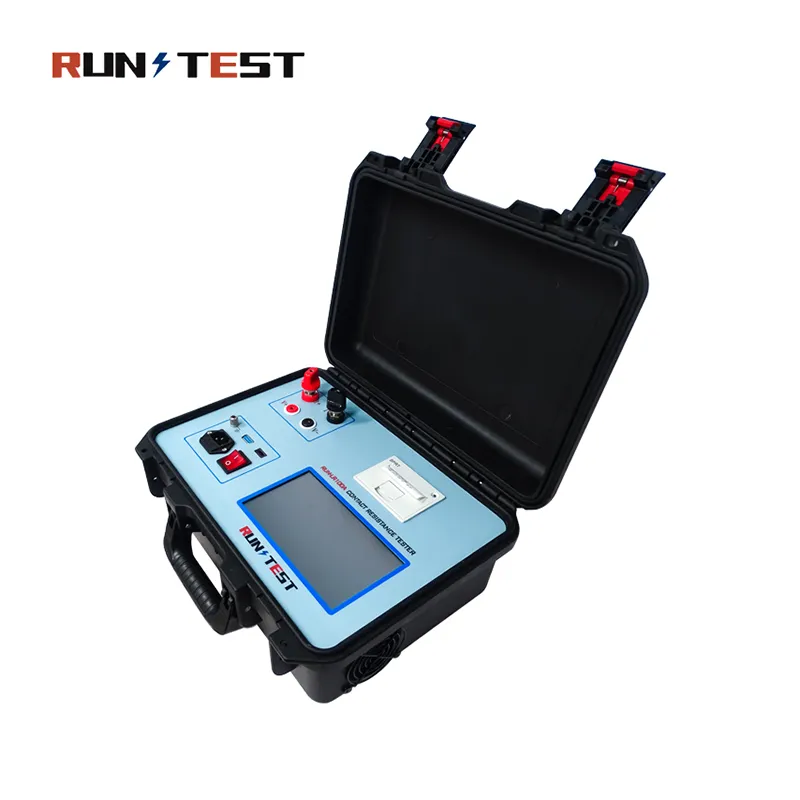

Micro-Ohm Meter Digital 100A Contact Loop Resistance Tester
Specification of the 100A contact resistance tester
| Display Type | Digital Only |
| Product Name | Micro-Ohmmeter |
| Test Current | 50A, 100A |
| Accuracy | ± (0.5%+2 Digit) |
| Operating Temperature | 0~40℃ |
| Relative Humidity | ≤90%RH, NON-CONDENSING |
| Dimension | 360mm*290mm*170mm |

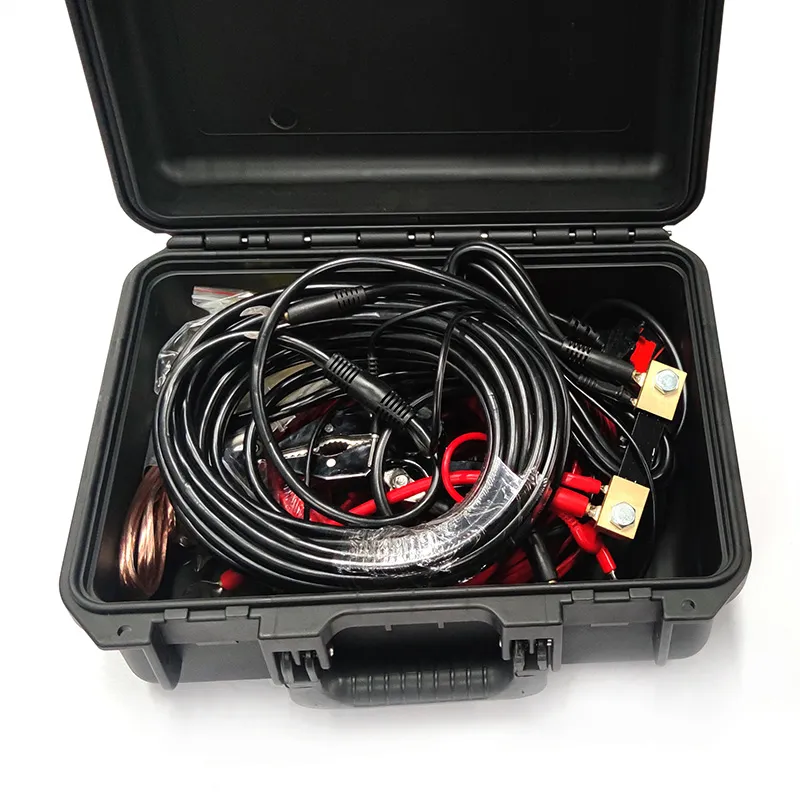

| Weight | 12kgs ( Wire box included) |
| Best Resolution | 0.1μΩ |
| Test Current | 50A, 100A |
| Range | 0~100mΩ(50A) 0~50mΩ(100A) |
| Best Resolution | 0.1µΩ |
| Accuracy | ±(0.5%±2 digit) |
| Power | 1000 W |
| Test method | Constant test |
| Power supply | AC220V±10% 50HZ |
| Operating temperature | 0~40℃ |
| Relative Humidity | 0-90%, non-condensing |
| Dimensions | 360*290*170mm |
| Weight | Instrument (5.6 KGS) Wire Box (6.5 KGS) |
Features of the Loop Contact Resistance Meter Test Kit
1. By downloading APP(Android), users can control instruments, store and upload test data for easy reference.
2. Multiple Protection function
3. Intelligent Power management technology, energy saving and heat reduction.
4. Higher Voltage outputs, wider measurement range.
5. Quick and automatic measurement due to high precision large constant current power supply.
6. To eliminate the influence of the test wire resistance on the test results by four-terminals wiring method.
7. 7"high brightness color LCD touch-screen, clear display even under strong light.
8. Internal data storage up to 1000 sets.
9. USB, RS232 used for computer connection or data storage.
10. Built-in Micro-printer.
