Aparelho portátil de teste de resistência de contacto 100A

Aparelho portátil de teste de resistência de contacto 100A

Breve descrição:

ITEM: RUN-HLR100A

The electrical contact resistance test is used for switching devices, cable joints as well as other connections. It can measure either the voltage drop or the resistance offered by the contacts or resistance of the joints or connections.

Vantagem: Light weight , convenient and easy to carry around to do the test

Serviço: The instrument will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.

Detalhe do produto

Etiquetas de produtos

First show the video about this handheld type contact resistance tester, it is really convenient for you to do the test:

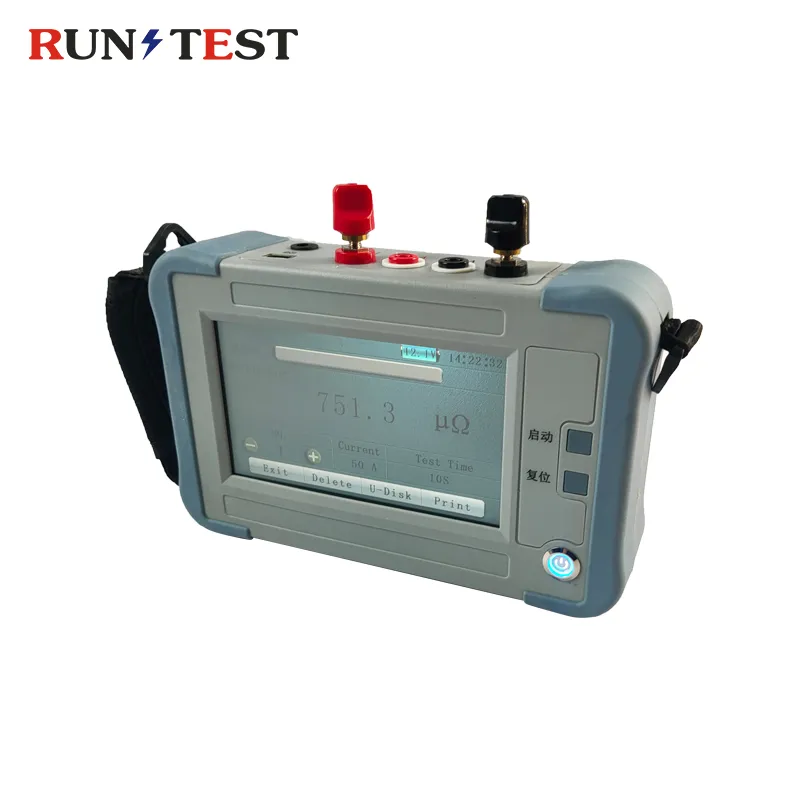

Hand-held type 100A circuit breaker contact resistance tester

It is widely used in the measurement of contact resistance, loop resistance of various switches and electrical appliances, as well as the contact resistance of cables, wires, and welds.

Technical Parameter of this contact resistance tester:

Corrente de teste

50A, 100A

Gama

0～5mΩ（50A）  0～2mΩ（100A）

Melhor resolução

0.1µΩ

Exatidão

±（0.5%±2 digits）

Test method

Constant test

Operating temperature

0～40℃

Humidade relativa

0-90%, non-condensing

Dimensões

425*335*210mm

Peso

Instrument 2 KG

Features of the 100A loop resistance tester:

1. Multiple Protection function

2. Intelligent Power management technology, energy saving and heat reduction.

3. Higher Voltage outputs, wider measurement range.

4. Quick and automatic measurement due to high precision large constant current power supply.

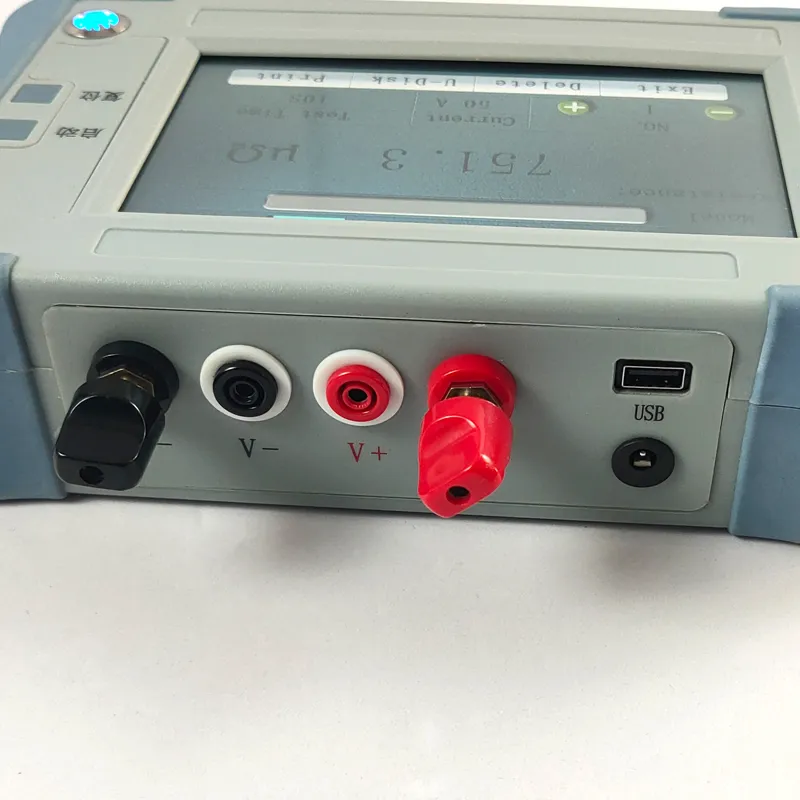

5. To eliminate the influence of the test wire resistance on the test results by four-terminals wiring method.

6. 7-inch high brightness color LCD touchscreen, clear display even under strong light.

7. Internal data storage up to 1000 sets.

8. USB, Bluetooth used for computer connection or data storage.

Packing List of the resistance tester:

Item

Quantity

Instrument

1

Red Test Line

1

Black Test Line

1

Factory Inspection Report

1

Charger

1
