4-in-1 Sf6 Gas Comprehensive Analyzer

Short Description:

ITEM: RUN-SF61006

The tester integrates SO2, dew point and purity measurement functions, and concentrates the functions that can only be realized by five instruments on one instrument. One on-site measurement can complete the detection of five indicators, greatly saving the gas in the equipment, saving 2/3 of the gas consumption for one measurement, reducing the workload of users, and improving the work efficiency.

SERVICE: The instrument will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and

technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.

Send email to us

Product Detail

Product Tags

Characteristics of Sf6 Gas Comprehensive Analyzer

1. Fast gas saving：The measurement time is about 5min after starting the machine and entering the measurement state.
2. Self-locking connector：The self-locking connector imported from Germany is used, which is safe and reliable without air leakage.
3. Data storage：Large capacity design, up to 250 sets of test data can be stored.

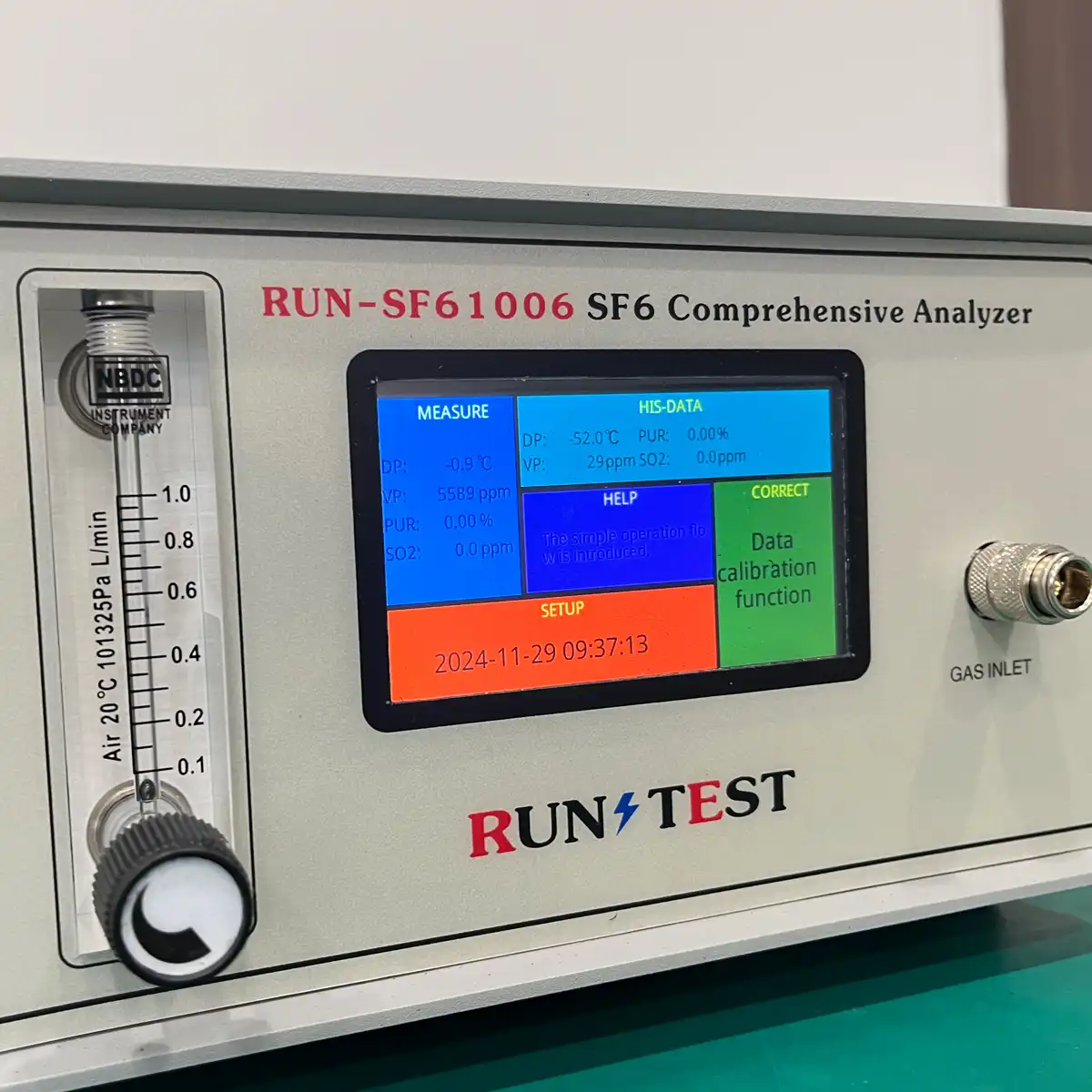

4. Clear display：3 inch high-definition touch screen, measuring interface directly displays SO2, dew point, purity, time and date, etc.
5. Built in power supply：Built in 4Ah rechargeable lithium battery, which can work continuously for 10 hours when sufficient.
6. Accurate measurement value：Temperature compensation function is added to ensure the accuracy of measurement results under various temperature conditions；
7. Local calibration：The machine is equipped with calibration function, and data calibration can be completed without connecting to a computer.

Technical parameters for the sf6 calibrator

SO2	Measuring range	0-100ppm
	Minimum detection quantity	≤0.1ppm
	Accuracy	±0.5%
	Repeatability	≤1%
The dew point	Measuring range	－60℃-+20℃
	Accuracy	±2℃
	Repeatability	≤1%
Purity	Measuring range	0%～100%
	measurement accuracy	±0.5%
	Repeatability	≤1%
Ambient temperature	－30℃-＋60℃
Ambient humidity	0～100％ RH
Power Supply	AC 220V
	Built in rechargeable battery
Battery performance	Charging time：20 hours；More than 10 hours of use。
Weight	6KG
Size	300×150×300mm3
Working temperature	－40℃～＋80℃

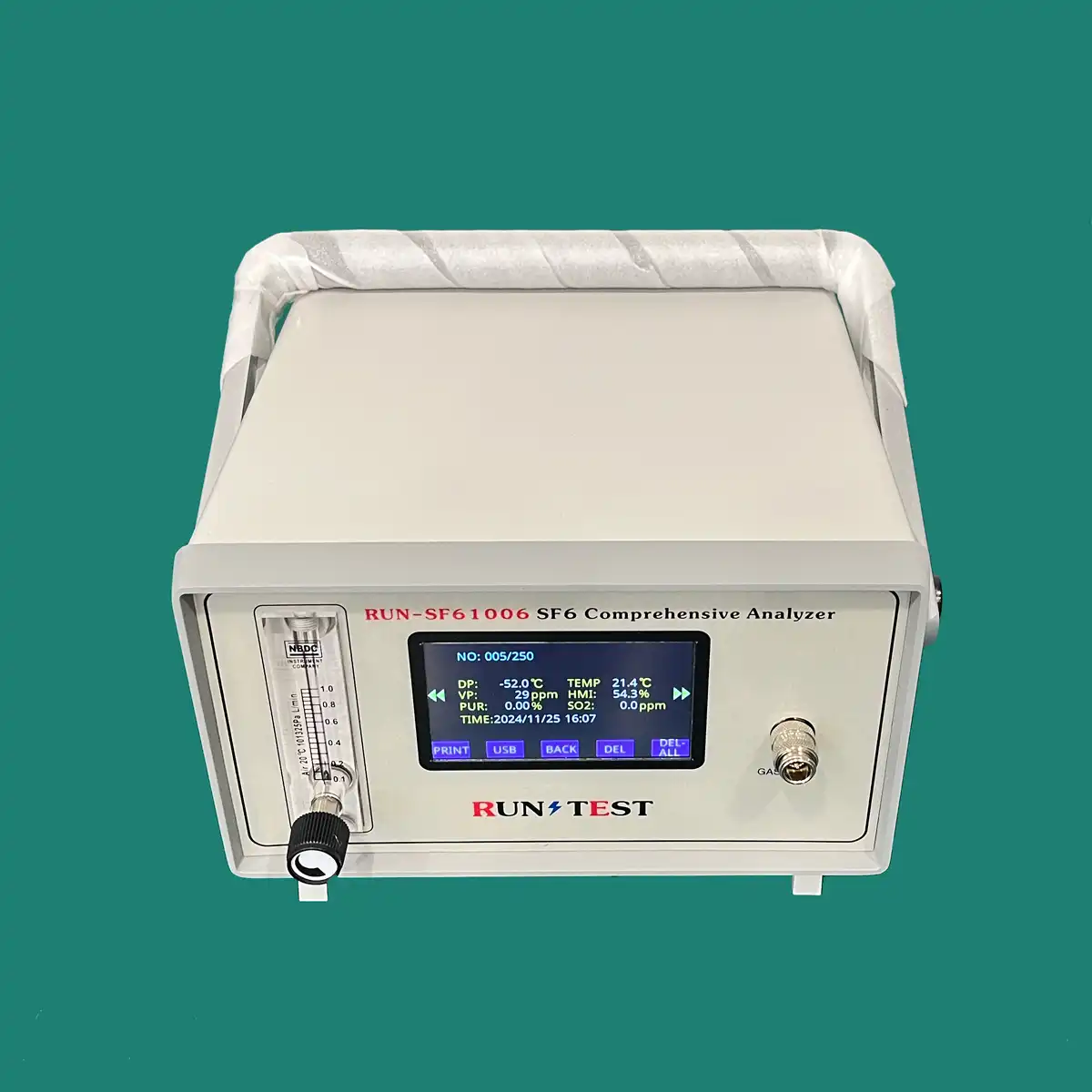

Equipment Show about the SF6 Gas Analyzer

Service Of RUN TEST ELECTRIC

The instrument will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.

tag：SF6, Sf6 Analyser, Sf6 Analyzer
