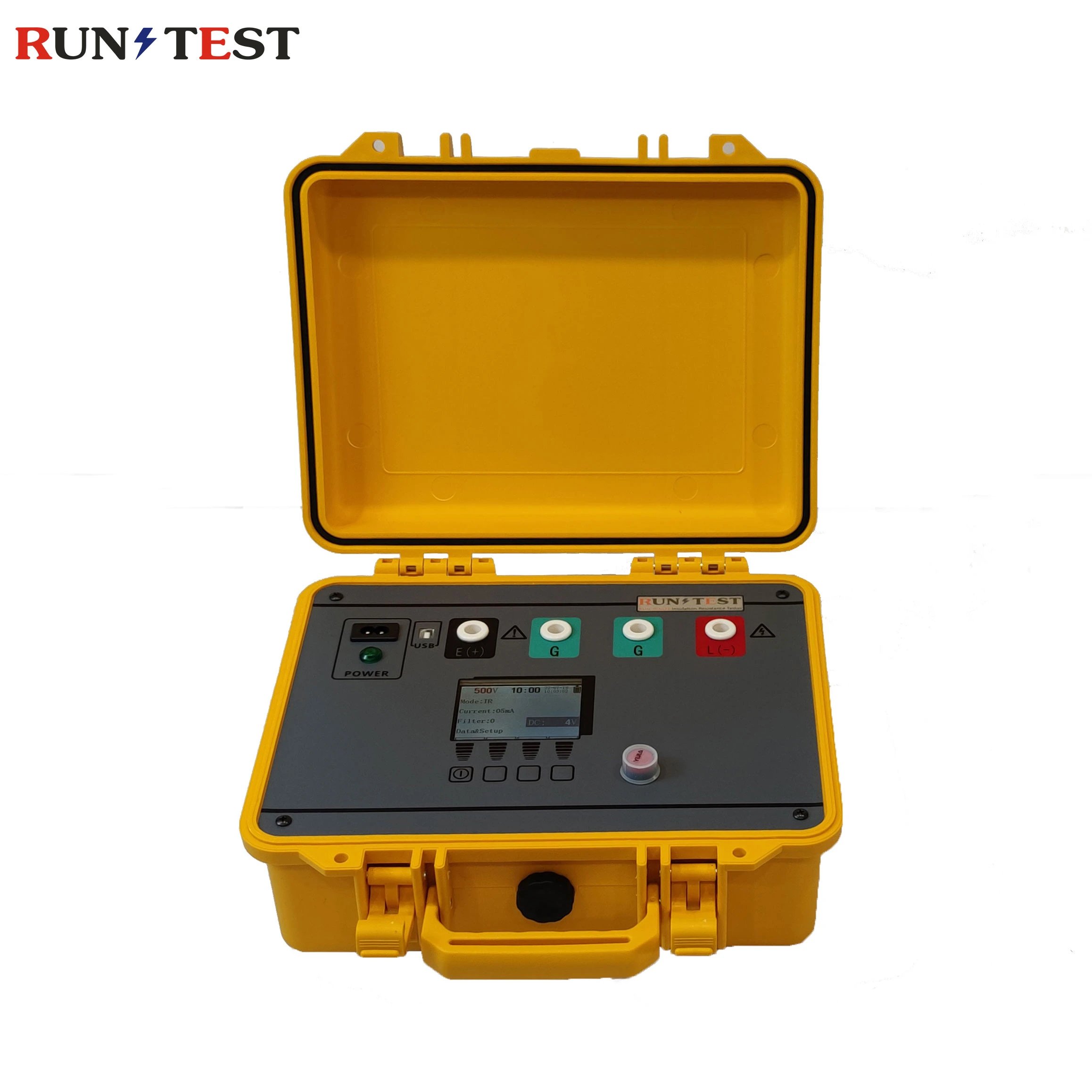

10kv High Voltage Digital Insulation Resistance Tester

Breve descrição:

ITEM: RUN-IR1026

It is an ideal test instrument for measuring insulation resistance of large-capacity transformers, transformers, generators, high-voltage motors, power cables, and lightning arresters.

Insulation resistance testing range and accuracy: T:23±5ºC ,RH :45 – 75%

CE certificate

Dimension: 27cm x 23cm x 16cm

Serviço: O instrumento será reparado e substituído gratuitamente em caso de problemas de qualidade do produto no prazo de um ano a partir da data de compra, e será concedida uma garantia vitalícia e

serviços técnicos. Se encontrar alguma anomalia ou mau funcionamento no instrumento, contacte a empresa a tempo de encontrar a solução mais conveniente para si.

Detalhe do produto

Etiquetas de produtos

Lightweight Multi Function AC/DC Withstand Voltage Insulation Resistance Tester

With five kinds of voltage output levels (500V, 1000V, 2500V, 5000V, 10000V), large capacity, strong anti-interference, AC and DC, simple operation.

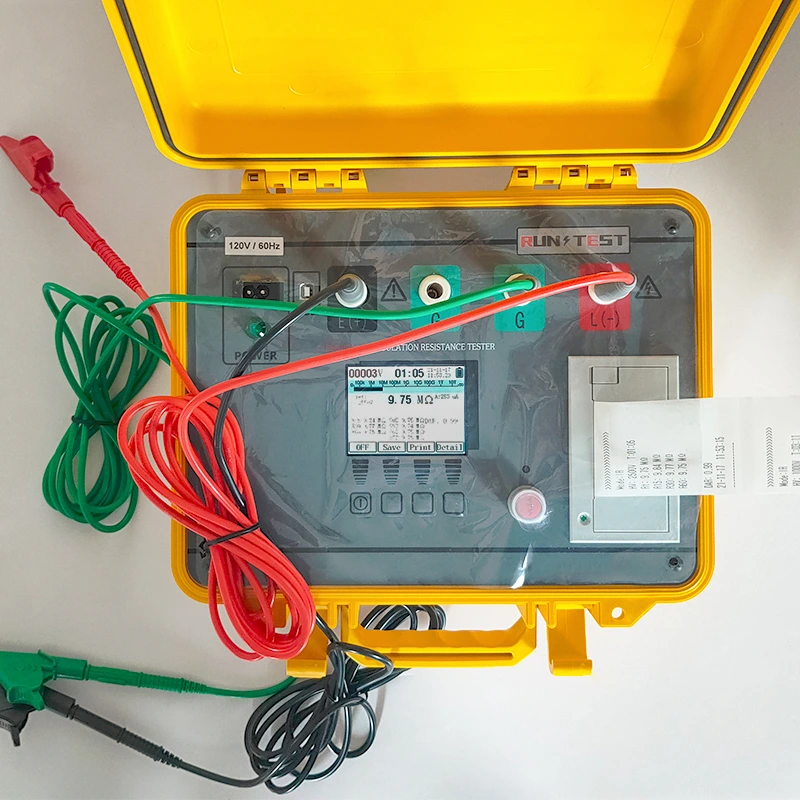

10kv High Voltage Digital Insulation Resistance Tester (4)

This is the insulation resistance tester (IR)video:

Here is the technical parameters of the Insulation Tester:

● AC Power 220V±10%,50/60 HZ ,20 VA
● Battery 16.8 V Lithium ion rechargeable battery
● Battery Life 5000V@100M, 6 hour
● Dimension(L x W x H) 27cm x 23cm x 16cm
● Test voltage accuracy: the nominal value  100% to 110%
● Output Voltage measurement accuracy ±5%±10V
● Voltage measurement range AC:30-600V(50HZ/60HZ), DC:30-600V
● Voltage measurement Accuracy ±2%±3dgt
● Current test range 10mA
● Current measure precision 5%+0.2nA
● Short-circuit current  2-5 mA, output adjustable
● Capacitance test range 25uF
● Capacitance test accuracy  ±10%±0.03uF
● Capacitor discharge rate  from 5000V to 10V,1S/µF
● Protection 2% error, shielding 500kΩ leakage resistance under 100MΩ load
● Analog display range 100kΩ to 10TΩ
● Digital display range 100kΩ to 10TΩ
● Alarm 0.01MΩ to 9999.99MΩ

Insulation resistance testing range and accuracy: T:23±5ºC ,RH :45 – 75%

             GamaExatidão 500V 1000V 2500V 5000V 10000V
Unspecified <100K <100K <100K <100K <100K
±5%±3dgt 100K-100G 100K-200G 100K-500G 100K-1T 100K-2T
±20% 100G -1T 200G-2T 500G-5T 1T-10T 2T-20T

Manual mode: Range: 1G/V, 100G at 100V. When the voltage is less than 200V, the resistance error increases by 10%.

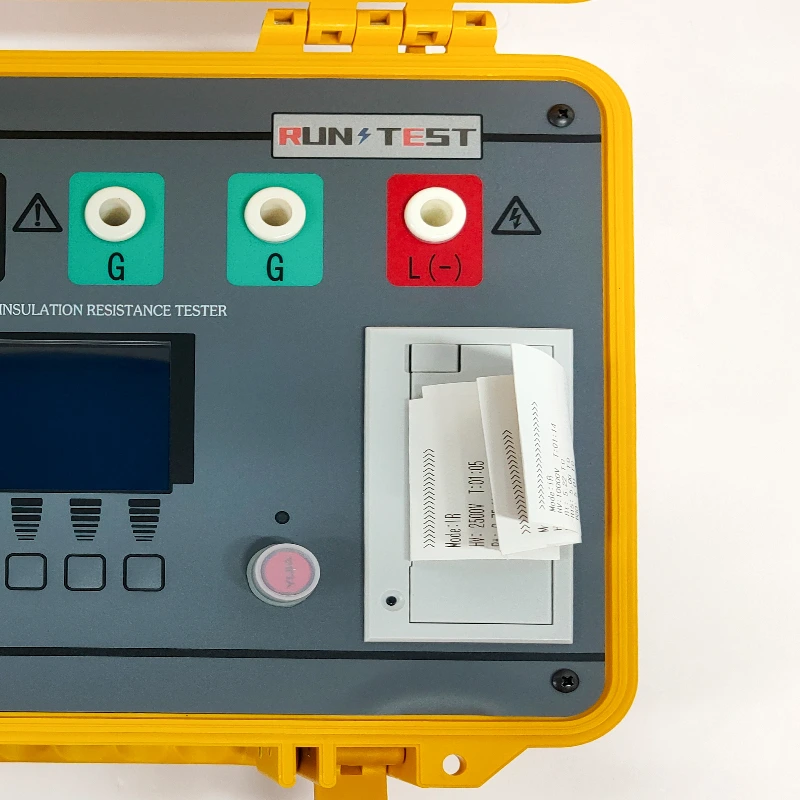

10kv High Voltage Digital Insulation Resistance Tester (5)

Features for this RUN-IR1026 resistance meter:

10kv High Voltage Digital Insulation Resistance Tester (6)10kv High Voltage Digital Insulation Resistance Tester (7)

1. Insulation resistance range 20TΩ@10Kv
2. The short-circuit current can be adjusted up to 5mA.
3. Automatically display the test values of polarization index (PI) and absorption ratio (DAR), and can test leakage current and capacitance, DD and SV.
4. Excellent anti-interference performance, when the interference current reaches 2mA, the instrument still guarantees the test accuracy.
5. The AC and DC voltage test function of the tested circuit can automatically identify AC or DC.
6. The capacitive test product is discharged quickly. When the cable is tested, manual discharge is not required, and the instrument automatically discharges quickly.
7. 2 power modes: use lithium battery for power supply, battery life can reach 6 hours.
8. At the same time, it can be charged in use. In the event of a power failure, it can automatically switch from AC power supply to battery power supply.
9. English Menu, easy operation,
10. Display insulation resistance simulation column.
11. Digital filter function, use the filter function to reduce the influence when the display value is deviated due to
12. external influence
13. Perfect protection function, the G/E circuit has a built-in fuse and has a blowout prompt, and the screen has a red background and white text prompt information when it is blown
14. Data storage function(USB Data export and Micro-printer optional)
