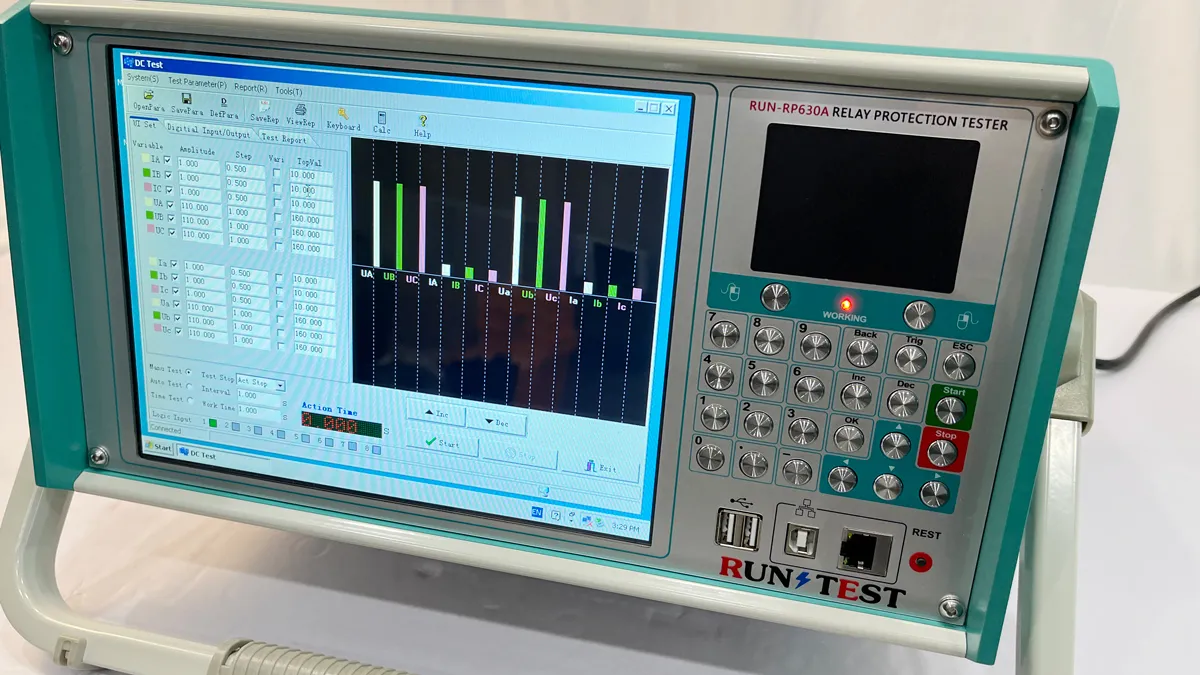

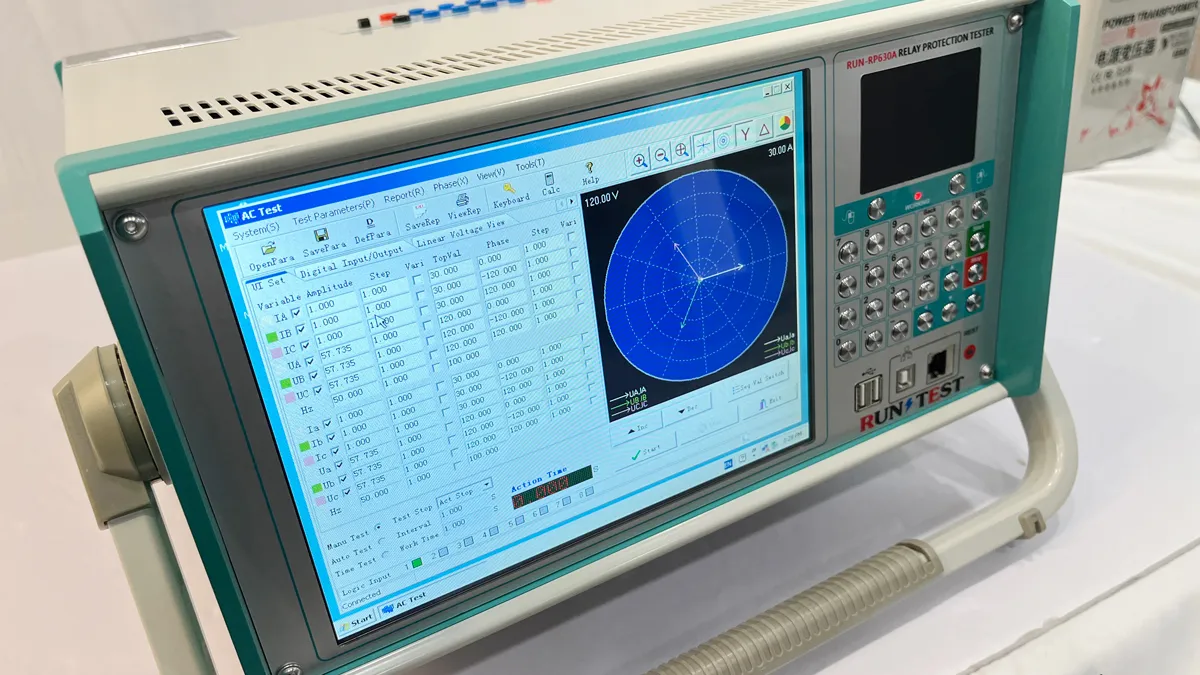

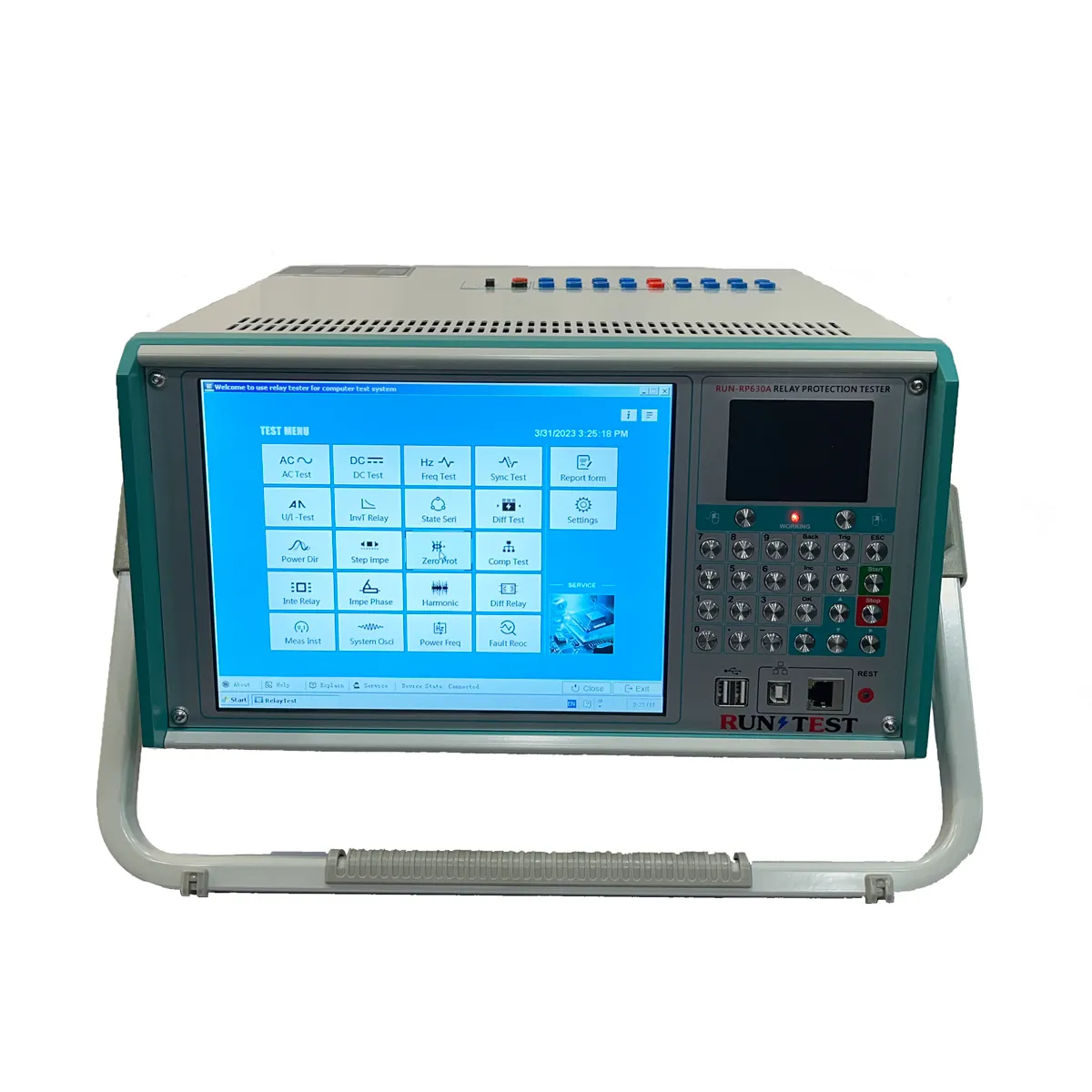

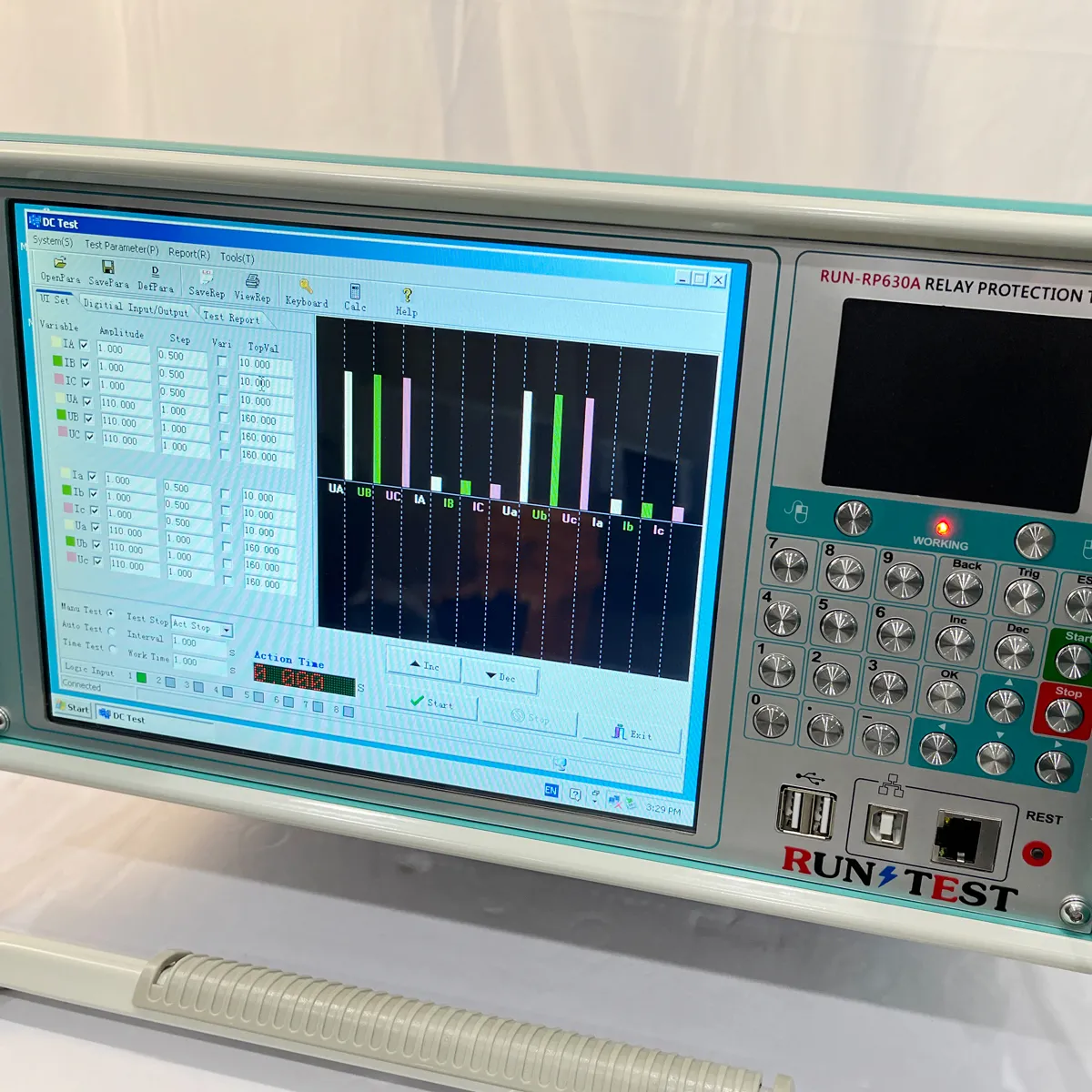

New 6 Phase Relay Protection Tester

Short Description:

ITEM: RUN-RP630A

6 voltage and current output channel. It can test not only traditional relays and protection devices, but also modern micro-computer protection devices, especially for transformer differential protection and standby automatic switching device. The test is more convenient.

SERVICE: The instrument will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and

technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.

Product Detail

Product Tags

Ⅰ: Brief introduction about the 6 phase relay protection tester:

It has the function of GPS synchronization test. The device can be built-in GPS synchronous card (optional) and connected with PC through RS232 port to realize synchronous test of two testers in different places.

Seconday Current Injection Relay Protection Tester 6 Phase

Secondary Current Injection Testing Equipment Three Phases Protection Relay Tester

Ⅱ: Technical Datesheet Of The Seconday Current Injection Relay Protection Tester 6 Phase

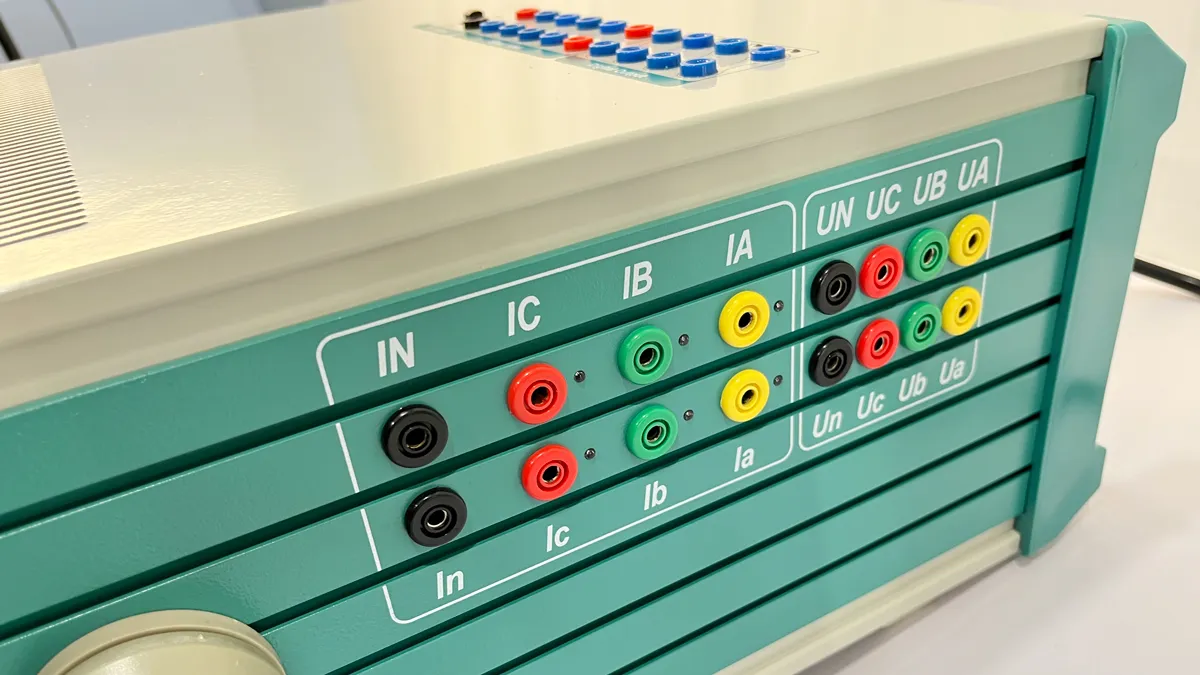

AC current source (6 * 30A):

Single phase current output (RMS)	0 -- 30A / phase, accuracy: 0.2% ± 5mA
Six currents in parallel (RMS)	0 – 180A / 6 same phase parallel output
Duty Cycle	10A continuous
Maximum output power per phase	320VA
Max. output power of three phase parallel current	1000VA
Max. output allowable working time of triple parallel current	5s
Frequency range	0 -- 1000Hz, accuracy 0.01Hz
Harmonic number	2—20 times
Phase	0—360o accuracy: 0.1o

DC current source：

DC current output

0--± 10A / phase, accuracy: 0.2% ± 5mA

AC voltage source：

Single phase voltage output (RMS)	0 -- 120V / phase, accuracy: 0.2% ± 5mv
Line voltage output (RMS)	0--240V
Phase voltage / line voltage output power	75VA/100VA
Frequency range	0 -- 1000Hz, accuracy: 0.001Hz
Harmonic number	2—20 times
Phase	0—360o, accuracy: 0.1o

DC voltage output：

Single phase voltage output amplitude	0--± 160accuracy: 0.2% ± 5mv
Output amplitude of line voltage	0--±320
Phase voltage / line voltage output power	90VA/180VA

Numbers of Switch& Measuring time range：

Switch input terminal	8 Pairs
Air contact	1 -- 20 mA, 24 V, internal active output of the device
Reversal Potential	Passive contact: low resistance short circuit signal Active contact: 0-250V DC
Switch output terminal	4 Pairs, no contact, breaking capacity: 110V / 2A 220V / 1A
