Transformer Test equipment Winding Resistance Meter DC Resistance Tester
Specification of 10A Transformer DC Resistance Tester
Winding Resistance Test: Measuring the resistance of the windings assures that the connections are correct and that there are no anomalies such as loose connections, high contact resistance in tap changers.

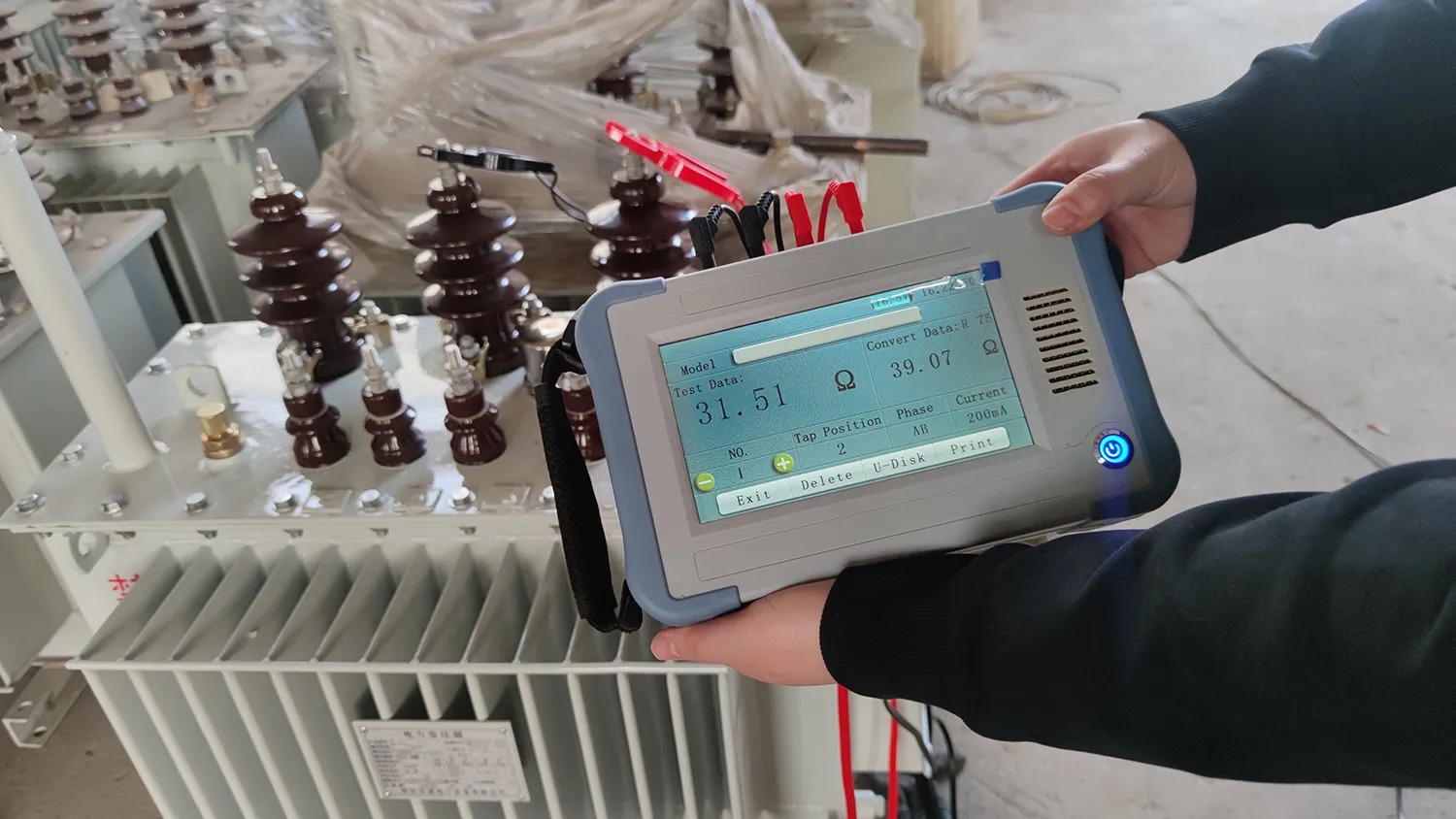

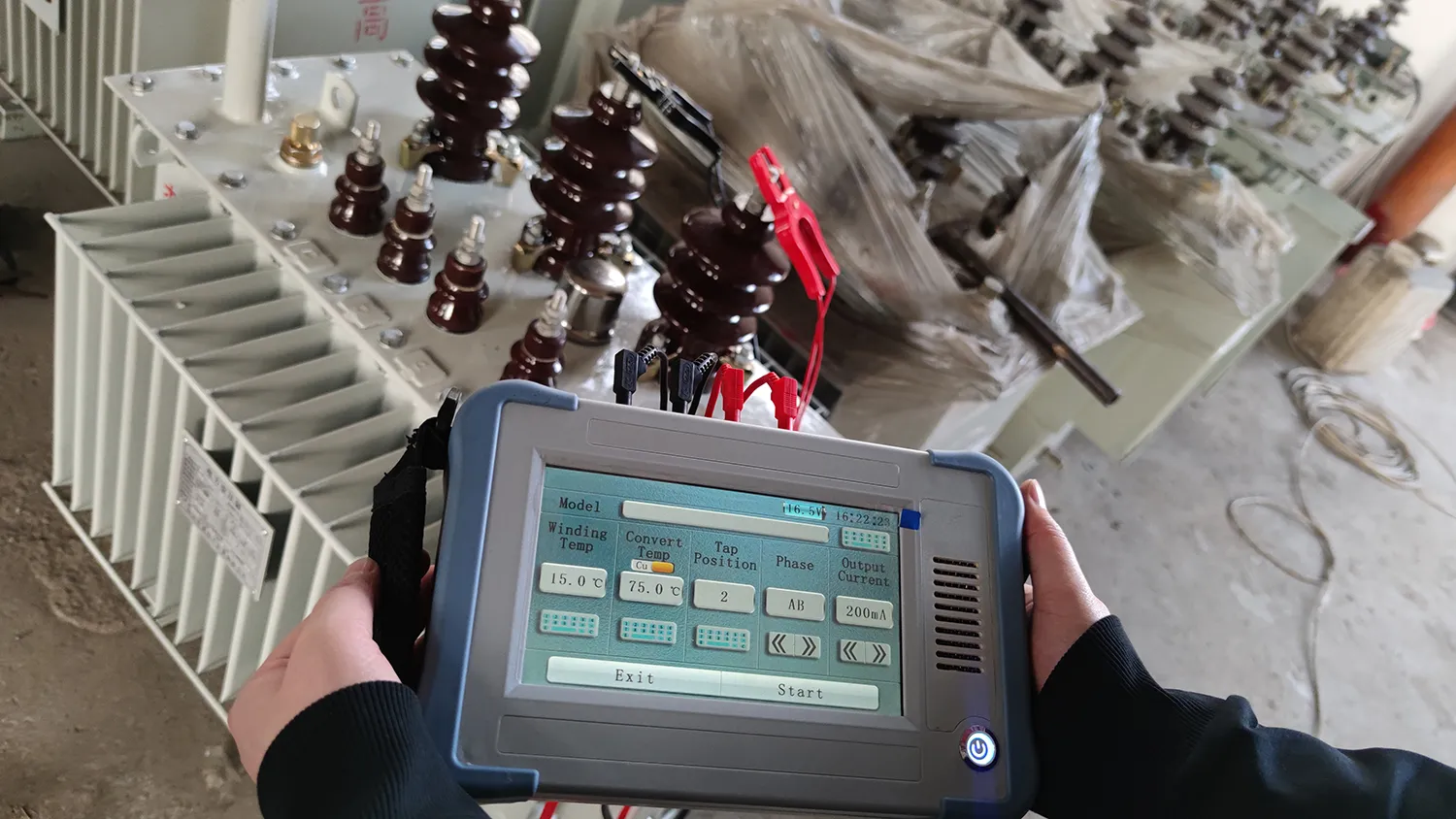

We take this video in transformer factory so as to show you how to use this test equipment:
Usage for Resistance Testing Equipment- Transformer DC Winding Resistance Meter

Used for checking the welding quality of the winding joints and whether the windings have inter-turn short circuits, check whether the contact of each position of the voltage tap switch is in good condition, whether the actual position of the tap changer matches the indicated position, whether the lead wire is broken, and the multi-stranded wire is wound in parallel. Whether there is stock breakage, etc.
1. Light weight, small size
2. Large output current, good repeatability
3. Strong anti-interference ability
4. high degree of automation
5. High test accuracy
6. Easy operation

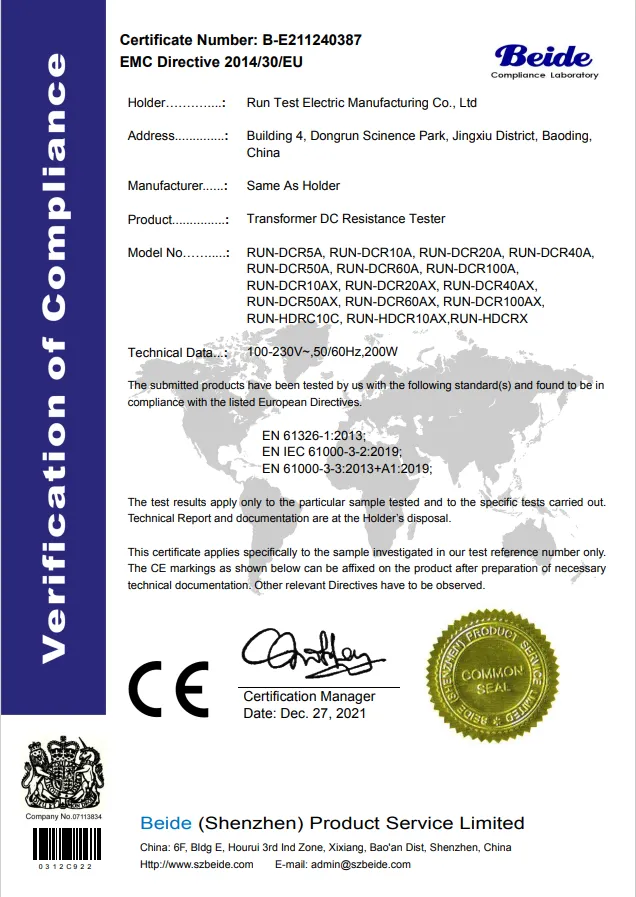

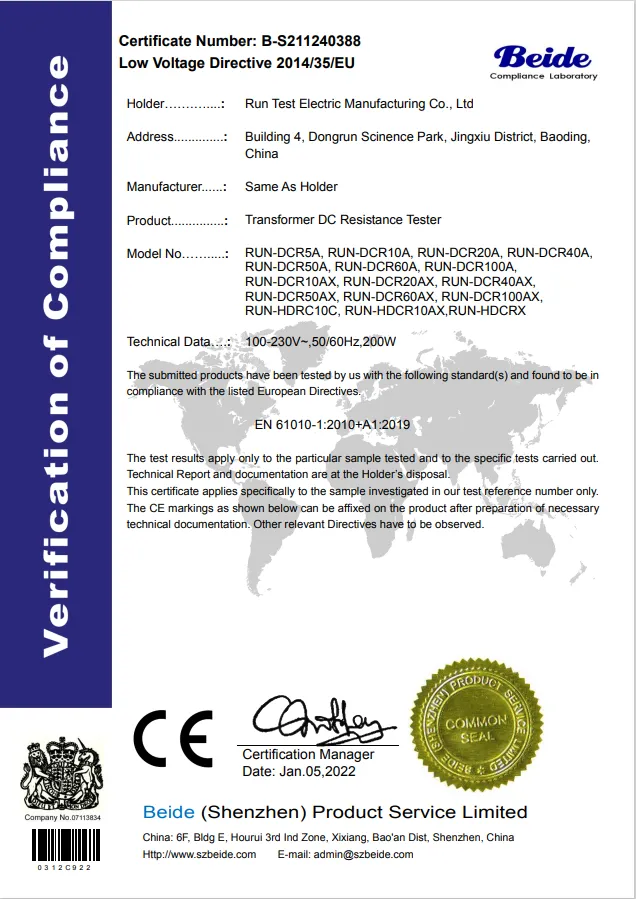

Here is the certification of the transformer winding resistance tester
