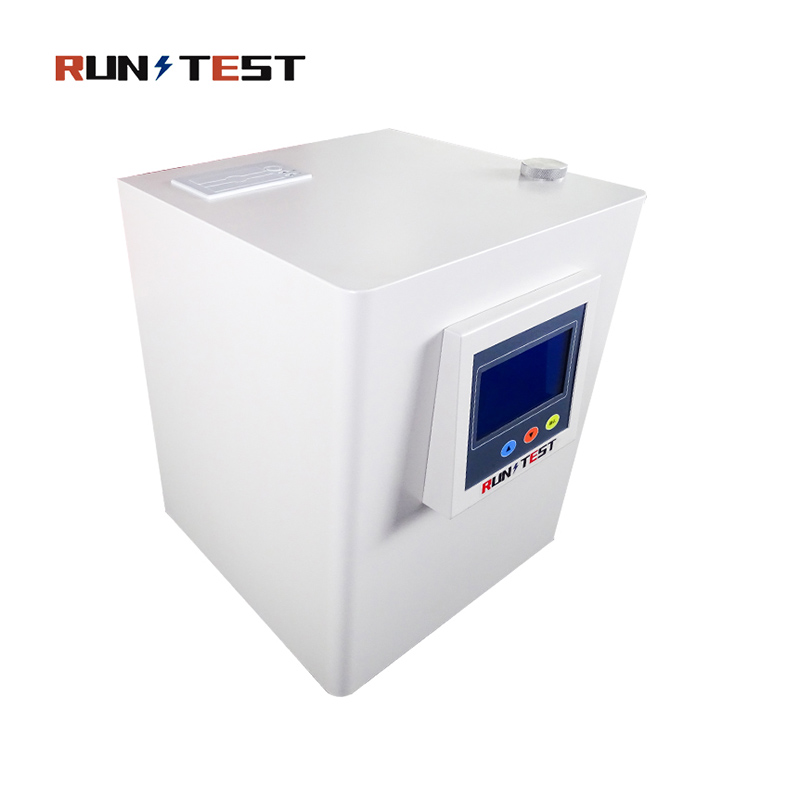

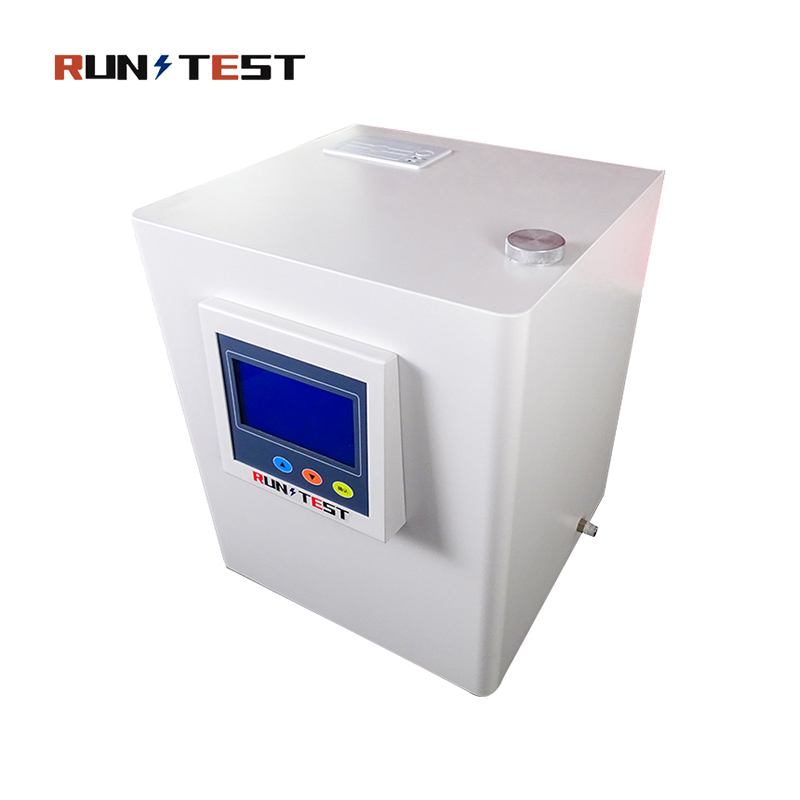

Automatic Transformer Insulation Oil Solidifying& Pour Point Tester
Transformer Oil Pour Point and Cloud Point Testing Device
The instrument has self-diagnosis function, and the analysis sample is fast, accurate, reproducible, stable and reliable. It is a special instrument for replacing imported products in the power, petroleum and chemical industries.
When testing the freezing point of petroleum products, the CPU controls the cooling system to cool the sample, and the LCD displays the status, temperature, set value and clock. When the sample is cooled to the maximum temperature (freezing point), the display displays the freezing point temperature, sound prompt and print the test results. When testing the pour point of petroleum products, when the sample cools to the lowest temperature that can flow (pour point), the display shows the pour point temperature, sound prompt and print the test results. The instrument is a special instrument for replacing imported products in the electric power, petroleum and chemical industries.
Specification of this Pour Point Tester
| Temperature Measurement | Platinum resistance |
| Accuracy | ±1℃ |
| Resolution | 0.1℃ |
| Measurement Range | +10℃ to -70℃ |
| Display | Blue LCD |
| Data Storage | 100Sets |
| Oil Sample | 20 ml each time |
| Cooling water | Pressure 4.9x101~4.9x105 Pa |
| Flow 1.5L/min | |
| Power Voltage | 220V ± 22V |
| Frequency | 50Hz ± 2.5Hz |
| AC Power | ≤250VA |
| Operating Temperature | 10~35 ℃ |
| Relative Humidity | ≤85% RH |
| Weight | 25kg |
Features about the Oil Pour Point Lab Equipment
1.High-performance microprocessor and the latest semiconductor refrigeration technology.
2.Self-diagnosis function, sample analysis is fast, accurate, repeatable, stable and reliable.
3.Adopt high-performance microprocessor and the latest semiconductor refrigeration technology.
4. Blue liquid crystal display (240 × 128) realizes Chinese character display and man-machine dialogue.
5.The instrument has self diagnosis function.
6.The analysis sample is fast, accurate, reproducible, stable and reliable.
