80kv VLF cable hipot tester

Short Description:

ITEM: RUN-VLF80S

Vlf hipot test set is particularly suitable for the withstand voltage test of electrical equipment (e.g.: power cables, power capacitors, large- and medium-sized generators and Motors, etc.) with large insulation equivalent capacitance.

Service: The instrument will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and
technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.

Product Detail

Product Tags

80kv AC Hipot Tester Vlf Ultra-Low Frequency High Voltage Generator Vlf AC Generator

High voltage withstand test of electrical equipment is one of the most important items specified in insulation preventive test.

The withstand voltage test can be divided into AC withstand voltage test and DC withstand voltage test. The AC withstand voltage test can be divided into power frequency, frequency conversion and 0.1hz ultra-low frequency test technology, of which 0.1hz ultra-low frequency technology is the latest technology recommended by the current international electrotechnical commission.

It is especially suitable for withstand voltage test of electrical equipment with large insulation equivalent capacitance (such as power cable, power capacitor, large and medium- sized generator and motor, etc.).

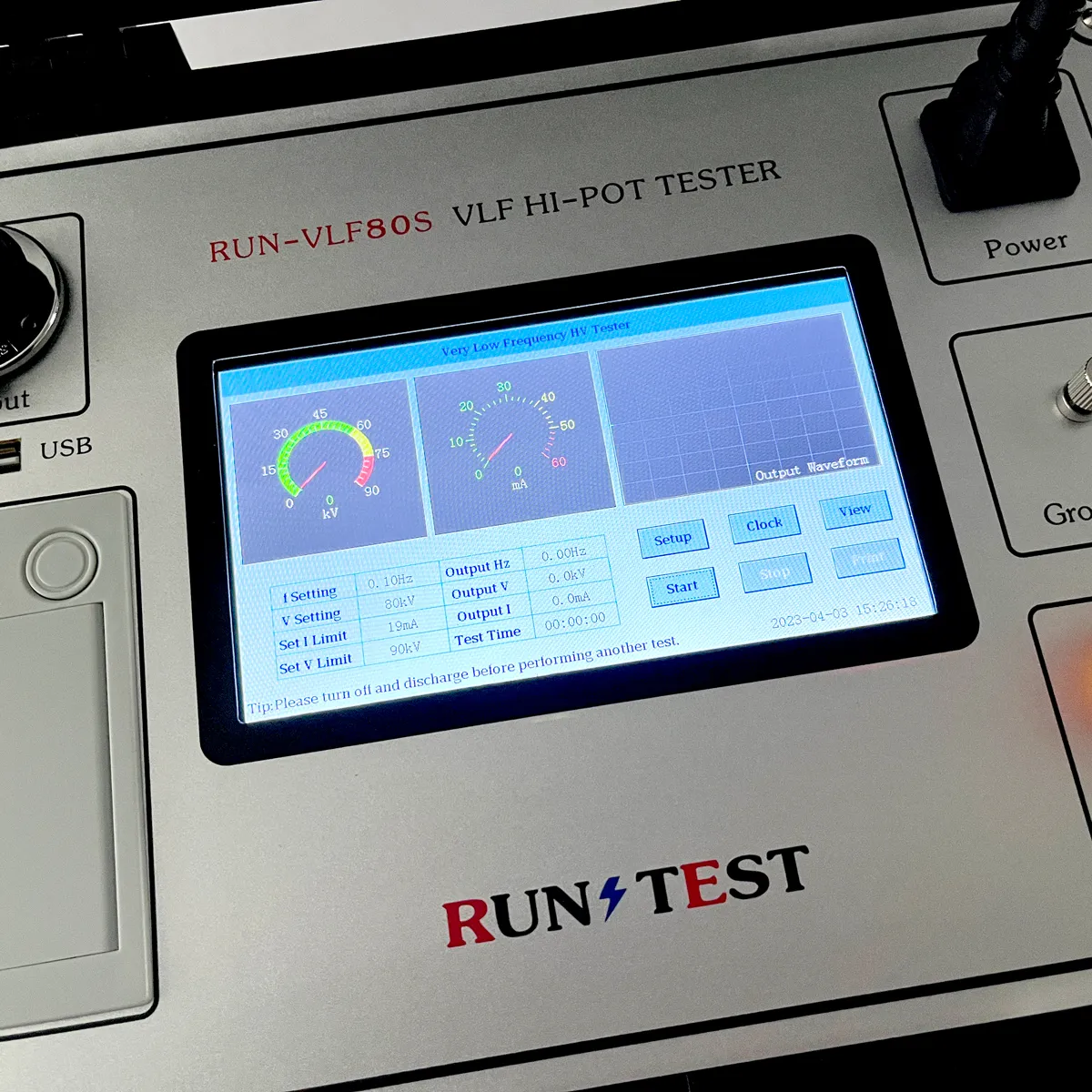

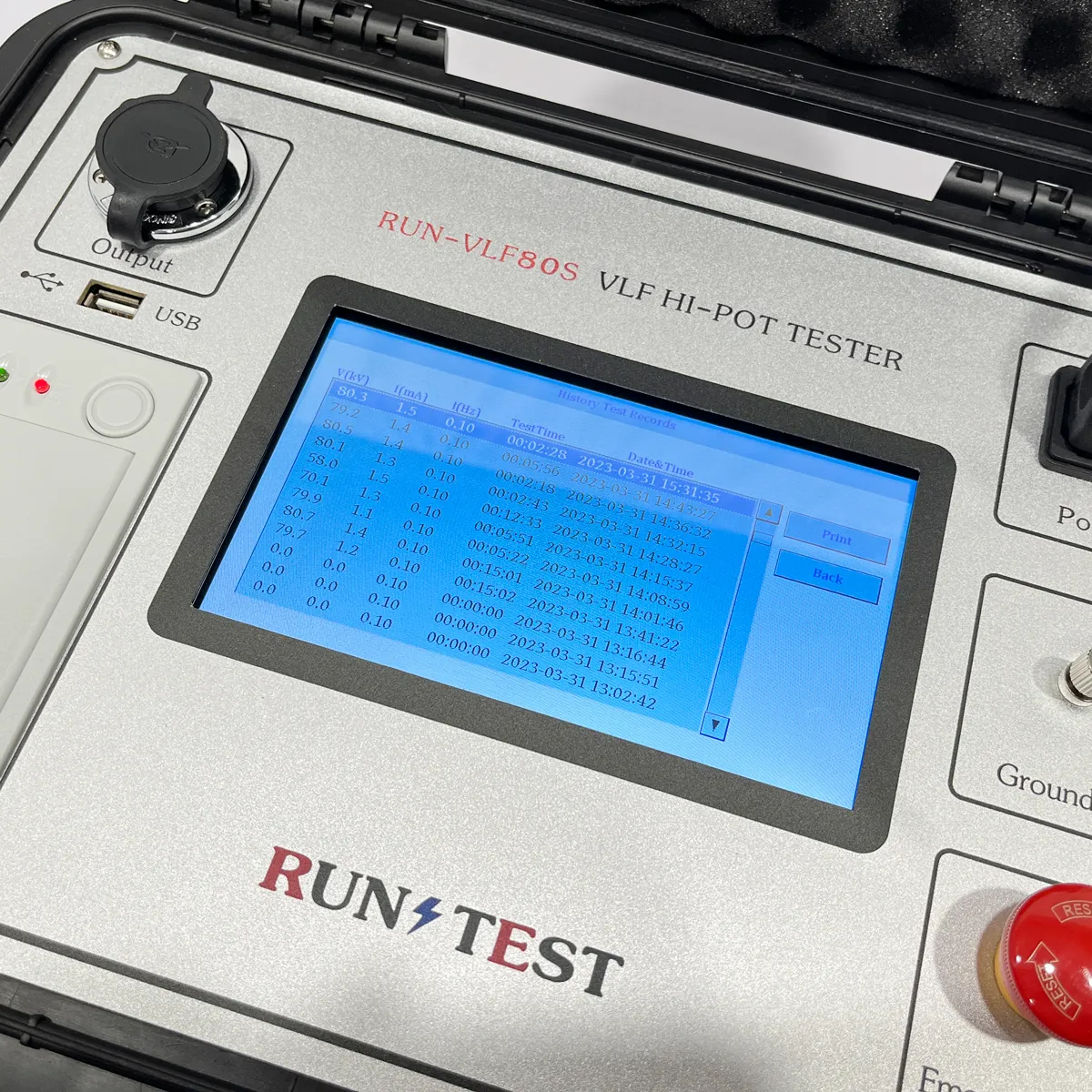

Some images about the 80kv Vlf Very Low Frequency Cable Hipot Withstand Voltage Tester

III. Vlf Cable Tester Technical Parameters

Model	Rated Voltage (Peak Value)	Load	Fuse	Weight
40KV /1.1		0.1Hz,≤1.1µF 0.05Hz,≤2.2µF 0.02Hz,≤5.5µF	8A
	40kV			Controller：6Kg

				Booster：20Kg
50kV/1.1		0.1Hz,≤1.1µF 0.05Hz,≤2.2µF 0.02Hz,≤5.5µF	10A
	50kV			Controller：6Kg

				Booster：45Kg
80KV/0.5		0.1Hz,≤1.1µF 0.05Hz,≤2.2µF 0.02Hz,≤5.5µF	20A
	80kV			Controller：6Kg

				booster：50Kg
90KV/0.5		0.1Hz,≤1.1µF 0.05Hz,≤2.2µF 0.02Hz,≤5.5µF	20A
	90kV			Controller：6Kg

				booster：55Kg

Main features of the 80kv Vlf Hipot Test

1. Advanced technology: using digital frequency conversion technology, microcomputer control, fully automated test processes such as boosting, bucking, measurement, and protection.
2. Easy to operate: simple wiring, easy to operate.
3. Comprehensive protection: multiple protections (overvoltage protection, high and low voltage side overcurrent protection), rapid action (action time ≤ 10ms), and the instrument is safe and reliable.
4. Safe and reliable: low-voltage connection between the controller and the high-voltage generator, photoelectric control, safe and reliable use.
5. The high and low voltage closed-loop negative feedback control circuit is adopted, and the output has no capacity rise effect.
6. Complete configuration: capacitive touch screen, LCD English character display, automatic storage, automatic printing.
7. Large test range: 0.1Hz, 0.05Hz and 0.02Hz multi-frequency selection, large test range.
8. Small size and light weight: very conducive to outdoor work.
9. Chinese and English switching function
