60KV VLF Cable Testing Hipot Tester

Short Description:

ITEM: RUN-VLF60S

0.1 Hz Ultra Low Frequency High Voltage Generator

Vlf hipot test set is particularly suitable for the withstand voltage test of electrical equipment (e.g.: power cables, power capacitors, large- and medium-sized generators and Motors, etc.) with large insulation equivalent capacitance.

30KV, 40KV, 50KV,60KV, 80KV are available

Advantage: Just one booster, light weight and convenient and high accuracy


Product Detail

Product Tags

Characteristics of Ultra Low Frequency High Voltage Generator

1. Adopting digital frequency conversion technology, microcomputer control, and the automatic testing process of boosting, bucking, measurement, protection, etc.
2. Convenient operation: simple wiring.
3. Comprehensive protection: multiple protections (overvoltage protection, high and low voltage side overcurrent protection), rapid action (action time ≤10ms), the instrument is safe and reliable.
4. Safe and reliable: The controller and the high-voltage generator are connected with low voltage, photoelectric control, safe and reliable to use.
5. Adopting high and low voltage closed-loop negative feedback control circuit, the output has no capacity increase effect.
6. 8-inch capacitive touch screen, LCD display, manual storage, manual printing.
7. Large test range: 0.1Hz, 0.05Hz and 0.02Hz multiple frequency options, large test range.
8. Small size and light weight: very conducive to outdoor operations.

Technical parameters for the VLF Hipot Tester

Rated Voltage

80 kV(Peak Value)

Output Frequency

0.1Hz, 0.05Hz, 0.02Hz

Carrying Capacity

0.1Hz

≤1.1µF

0.05Hz

≤2.2µF

0.02Hz

≤5.5µF

Fuse

10A

Accuracy

3%

Positive and negative peak voltage error

≤3%

Voltage waveform distortion

≤5%

Power supply

220V/50Hz

Environmental Conditions

Operating temperature :-10οC~40οC,

Relative Humidity :≤85%

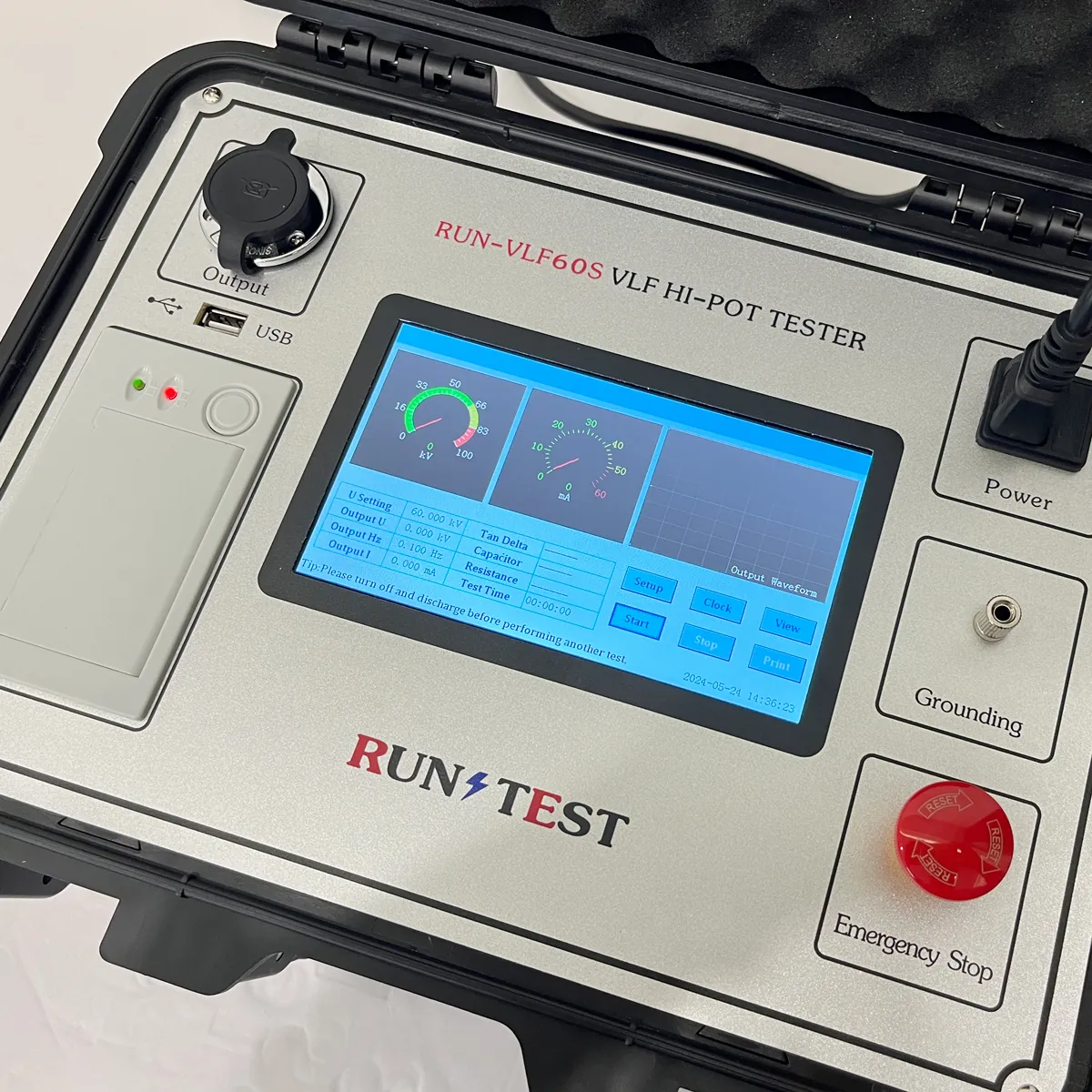

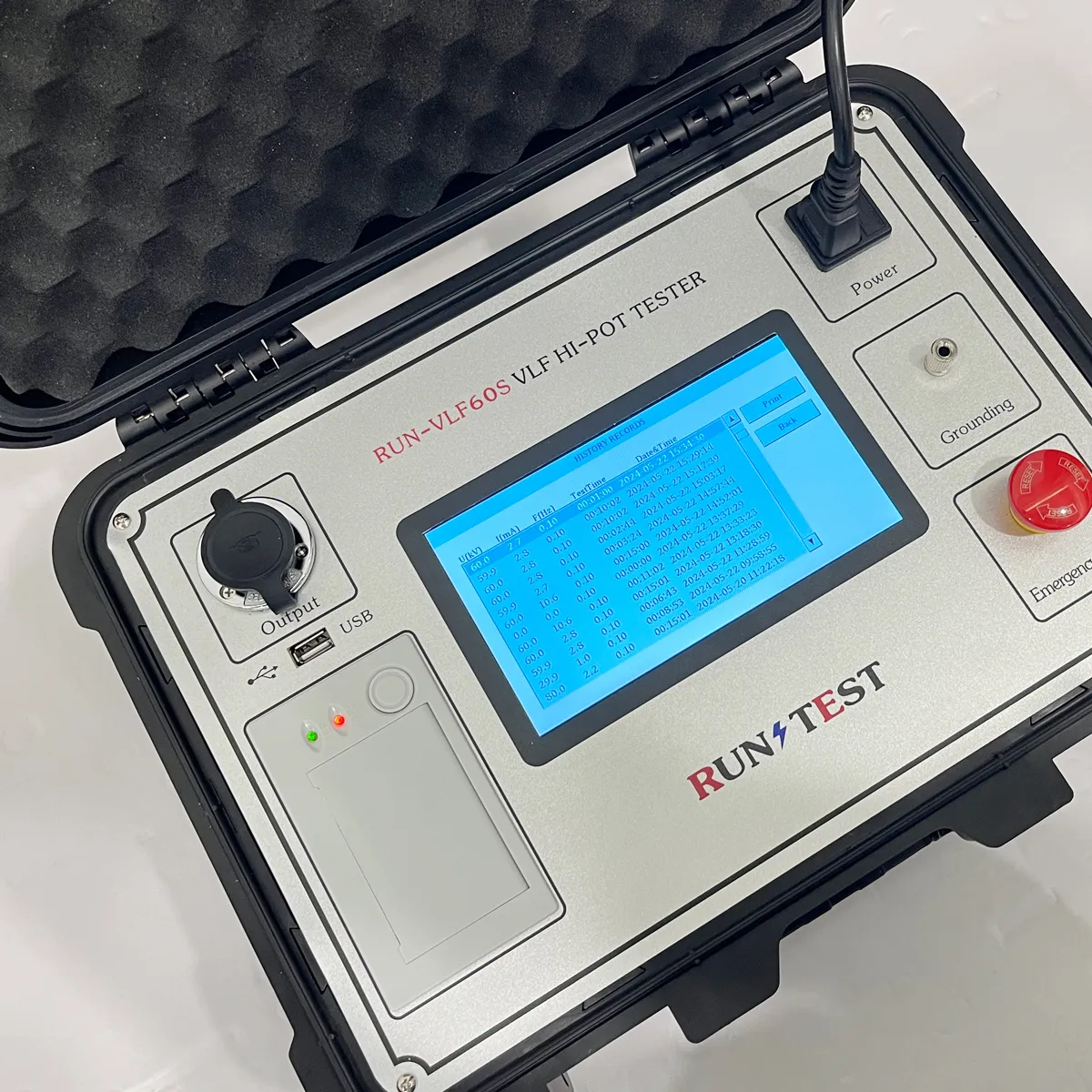

Equipment Show about the VLF

Ultra Low Frequency High Voltage Generator
VLF high voltage tester

Service Of RUN TEST ELECTRIC

The instrument will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and

technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.
