5KV AC 6KV DC Hipot Tester Insulation Resistance Tester
Electrical Safety Compliance Analyzer Programmable AC DC Withstanding Voltage Hipot Tester
The AC DC Withstanding Voltage Hipot Tester uses linear amplification technology to produce a low-distortion sine wave output, making the test more accurate. The use of a 16×2 large-character LCD display screen and a user-friendly interactive operation mode make it clearer and easier for users to understand. The test results and test conditions are displayed at the same time, which makes users feel at ease about the test conclusions.
Technical parameters of the Hipot Tester
|
AC Withstand Voltage Test |
Output voltage | Range: 0-5000V, 0-12mA, resolution 10V |
| Accuracy: ± （2% set value + 5V） | ||
| Output frequency | 50Hz/60Hz selectable | |
| Output waveform | Sine wave, distortion degree <2% | |
| Upper limit setting | Range: 0.10-12.00mA, resolution 0.01mA Accuracy: ± （2% set value + 2 words） |
|
| Lower limit setting | Range: 0.00-12.00mA, resolution 0.01mA Accuracy: ± （2% set value + 2 words） |
|
| Arc detection | Level 1-9 | |
|
DC Withstand Voltage Test |
Output voltage | Range: 0-6000V, resolution: 10V, accuracy: ± （2% set value + 5V） |
| Output ripple | <5% （6KV/5mA） tested under linear load | |
| Upper limit setting | Range: 0.02-5.00mA, resolution: 0.01mA Accuracy: ±（2% set value + 2 words） | |
| Lower limit setting | Range: 0.00-5.00mA, resolution 0.01mA Accuracy: ±（2% set value + 2 words） | |
| Automatic discharge | 200mS | |
|
Control interface |
Input: test（TEST）, reset （RESET） Output: Test passed （PASS）, test failed （FAIL） Testing in progress （TEST-IN-PROCESS） |
|
|
Slow rise setting |
0.1-999.9 seconds | |
|
Testing time |
Range: 0.5-999.9 seconds （0=continuous test） | |
|
Test result output method |
Buzzer, LCD display reading, control interface status output | |
|
Memory group |
5 groups of test conditions are memorized, each group has 3 test steps to choose | |
|
Monitor |
16×2 LCD display with backlight | |
|
Insulation Resistance Test |
Output voltage | Range: DC100-1000V, resolution 10V Accuracy: ± （2% set value + 5V） |
| Resistance range | Range: DC100-1000V, resolution 10V Accuracy: ± （3% set value + 2 words） voltage ≥ 500V ±（7% setting value+2 words）voltage＜500V |
|
| Upper limit setting | Same resistance range, spacing 1MΩ | |
| Lower limit set point | Same resistance range, spacing 1MΩ | |
Features about this AC DC Withstanding Voltage Hipot Tester
1. 16×2 large character LCD display
2. Linear, low distortion sine wave output
3. 5 groups of program setting and memory function
4. Voltage ramp setting function
5. Unique arc detection function, defect identification is more accurate
6. AC and DC withstand voltage/insulation test function

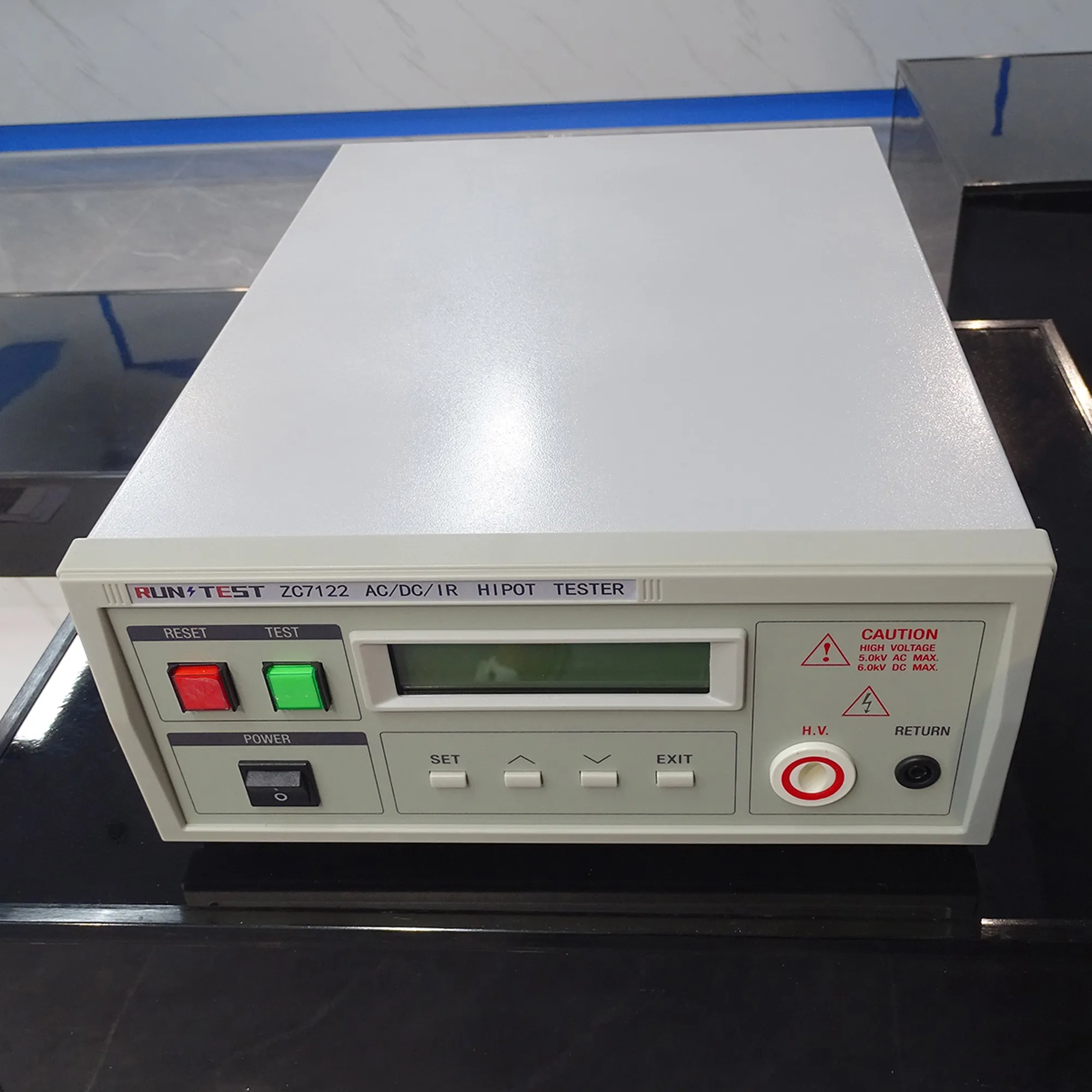

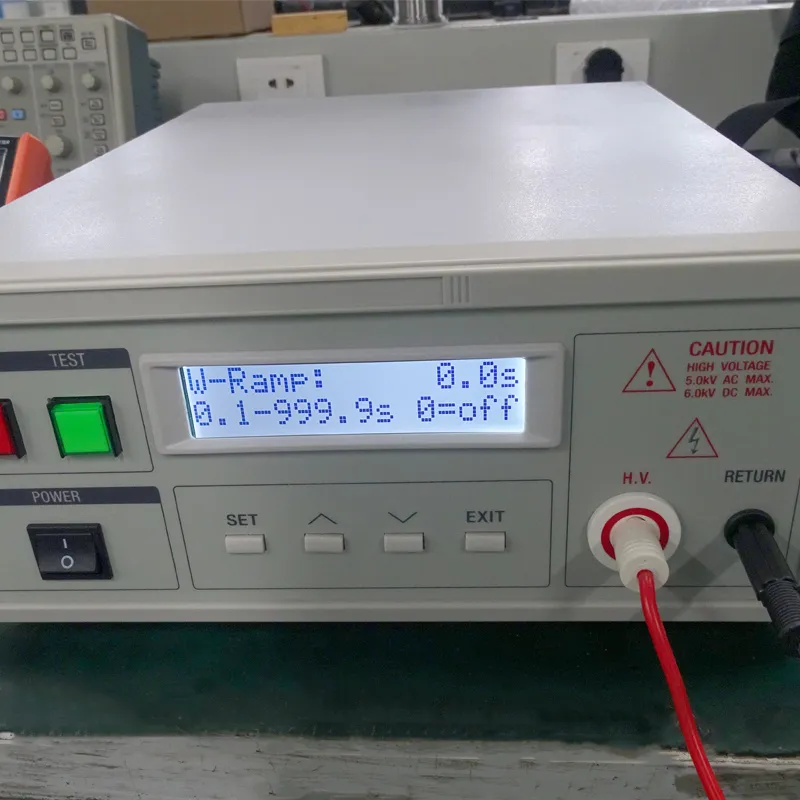

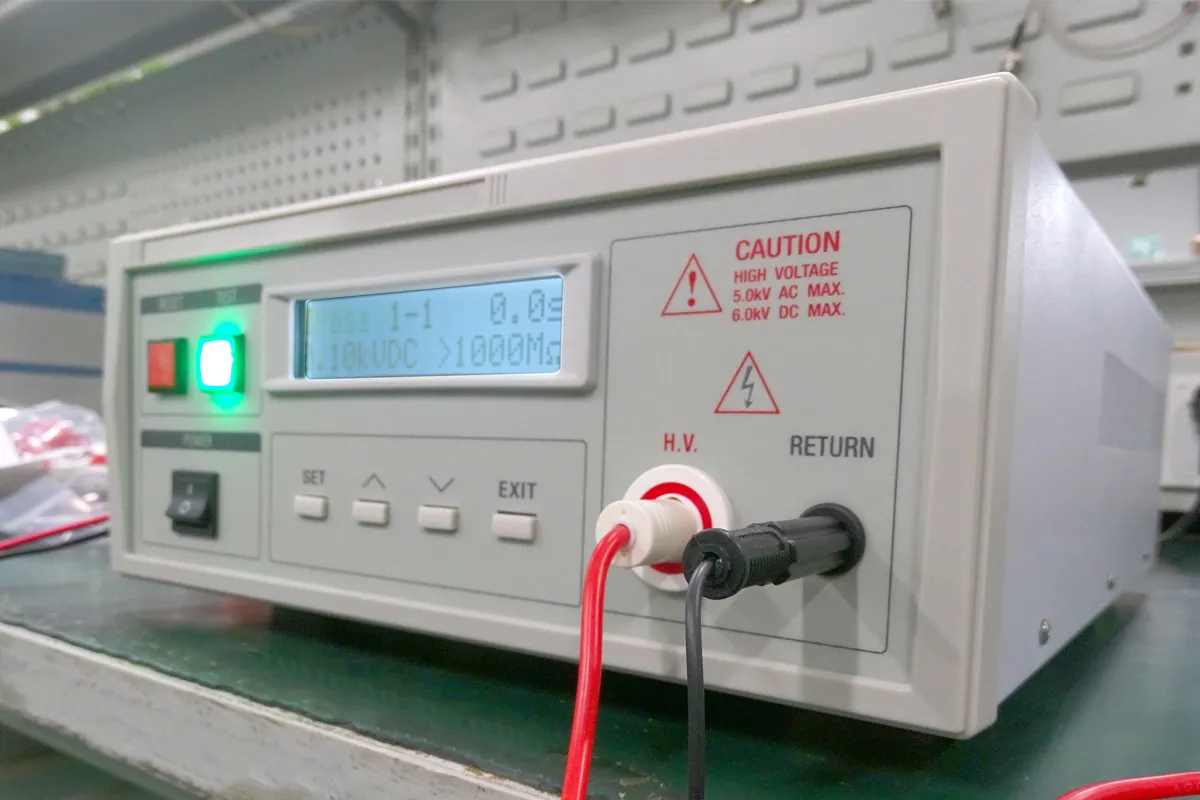

The following are the actual product pictures and packaging pictures for this Programmable withstand voltage analyzer
